WorkCentre 3210/3220 Multifunction Printer Service Manual 8-59
Service Parts Disassembly
Left Cover
PL2.0.2
1. Disconnect the Optional Feeder cable from the printer (if the Optional
Feeder is connected).
2. Remove the Front Cover (page 8-58).
3. Remove the Duplex Unit (page 8-69).
4. Remove the Rear Cover (page 8-61).

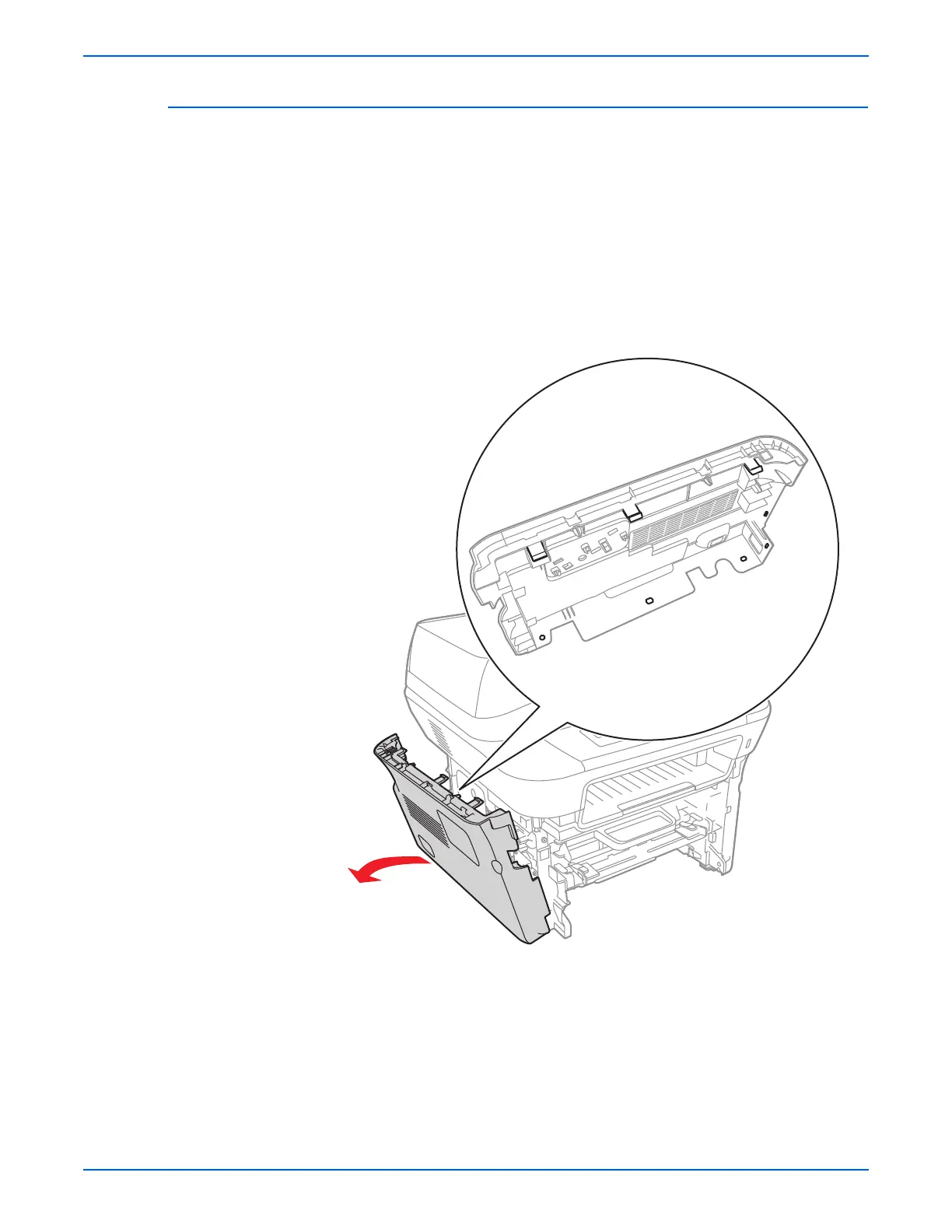

5. Pry the bottom rear of the Left Cover to release the 3 bosses on the
bottom of the cover.
6. Slide the Left Cover out and remove the Left Cover.
