Xerox WORKCENTRE 3210

8-60 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

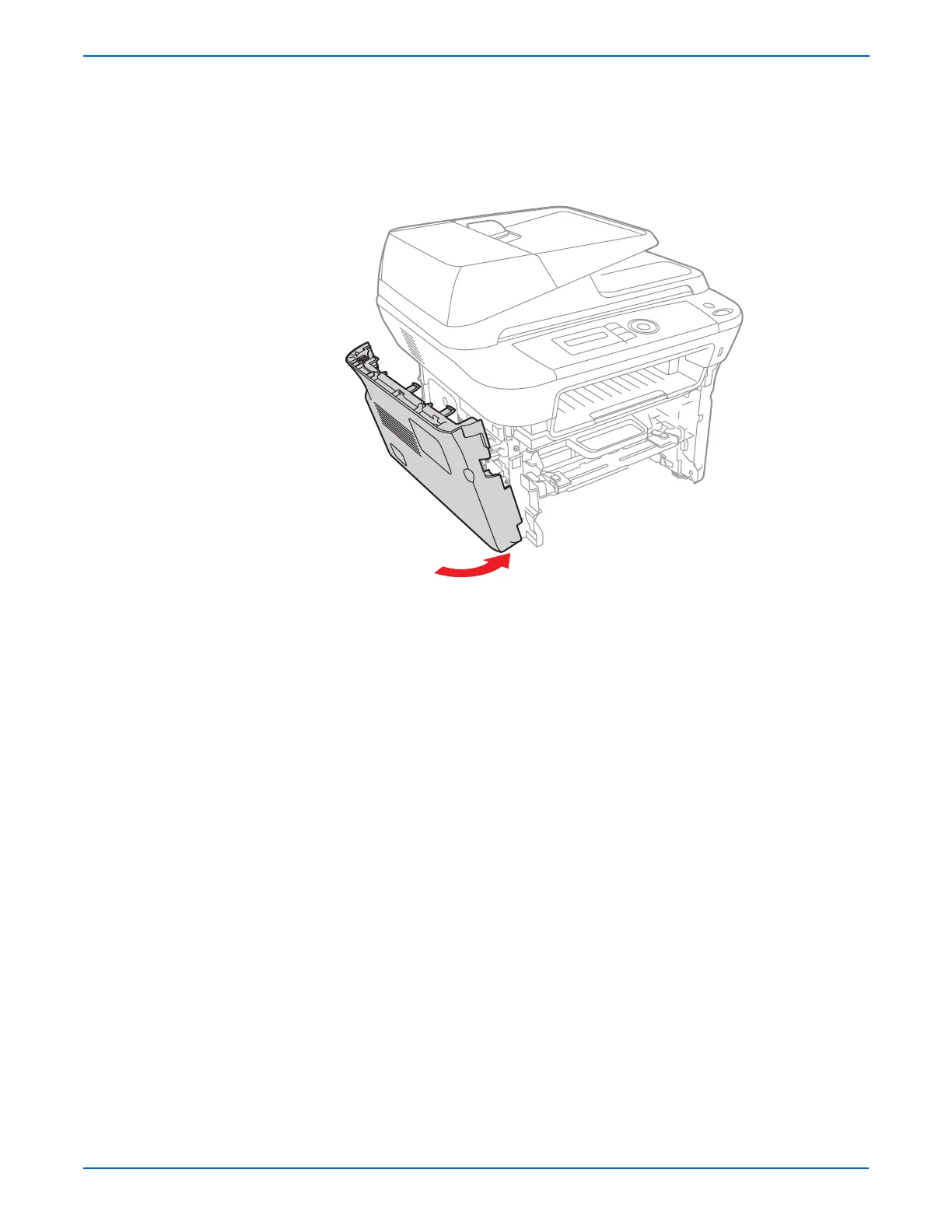

Replacement Note
Place the front side of the Left Cover at an angle to secure the latch of
the Left Cover to the notch on the printer frame while sliding the Left
Cover toward the printer.
s3210mfp-185
