WorkCentre 3210/3220 Multifunction Printer Service Manual 8-111
Service Parts Disassembly
Laser Unit Fan
PL4.0.39

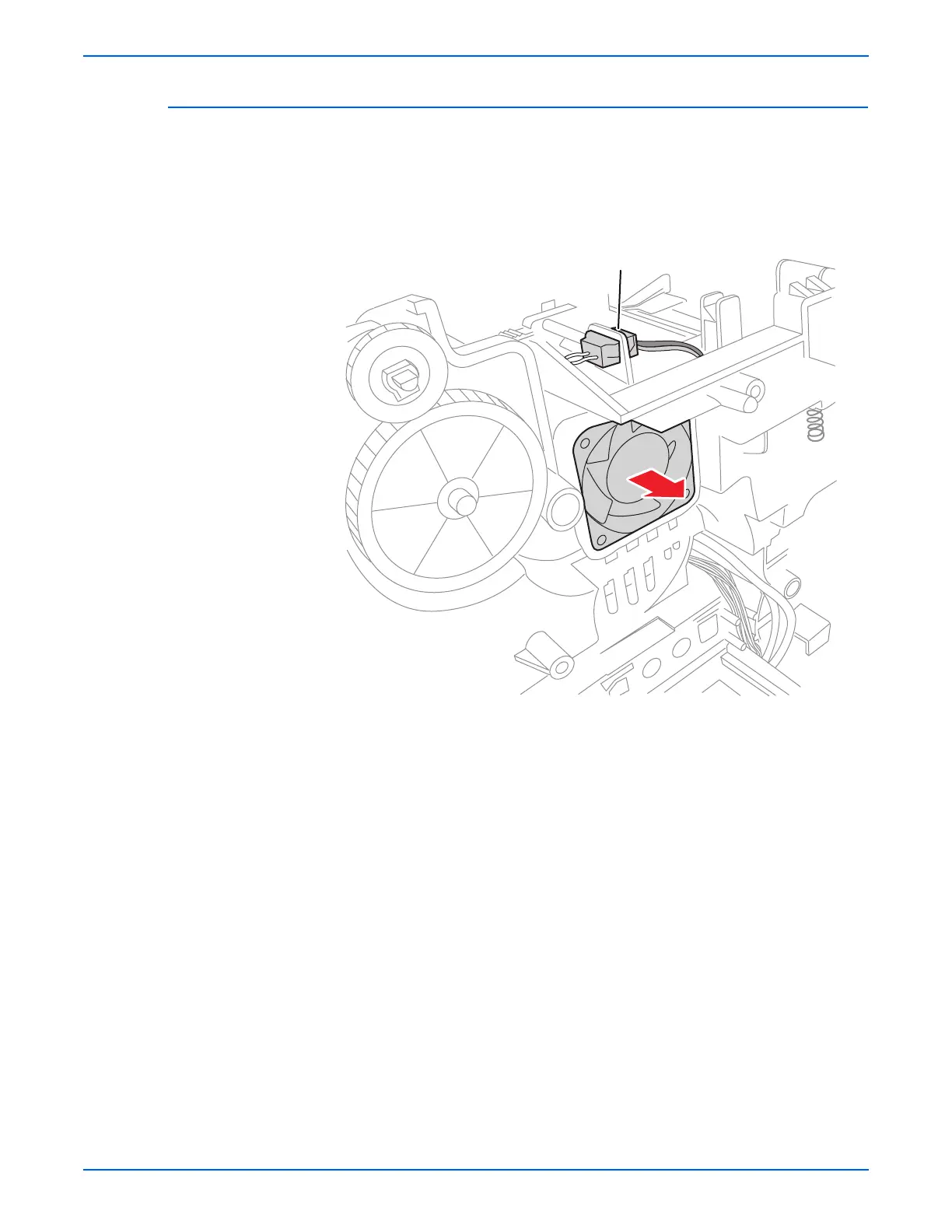

1. Remove the Drive Unit Assembly (page 8-98).
2. Disconnect the gray and black wiring harness connector CN34.
3. Pull the Fan out away from the printer and remove the Fan.
s3210mfp-072
CN34
