8-122 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Pick Up Unit
PL10.0.10
1. Remove the Optional Tray Assembly (page 8-117).
2. Remove Tray 2.
Do not flex the latch. This will prevent the pick up idle from resting
securely after installation.

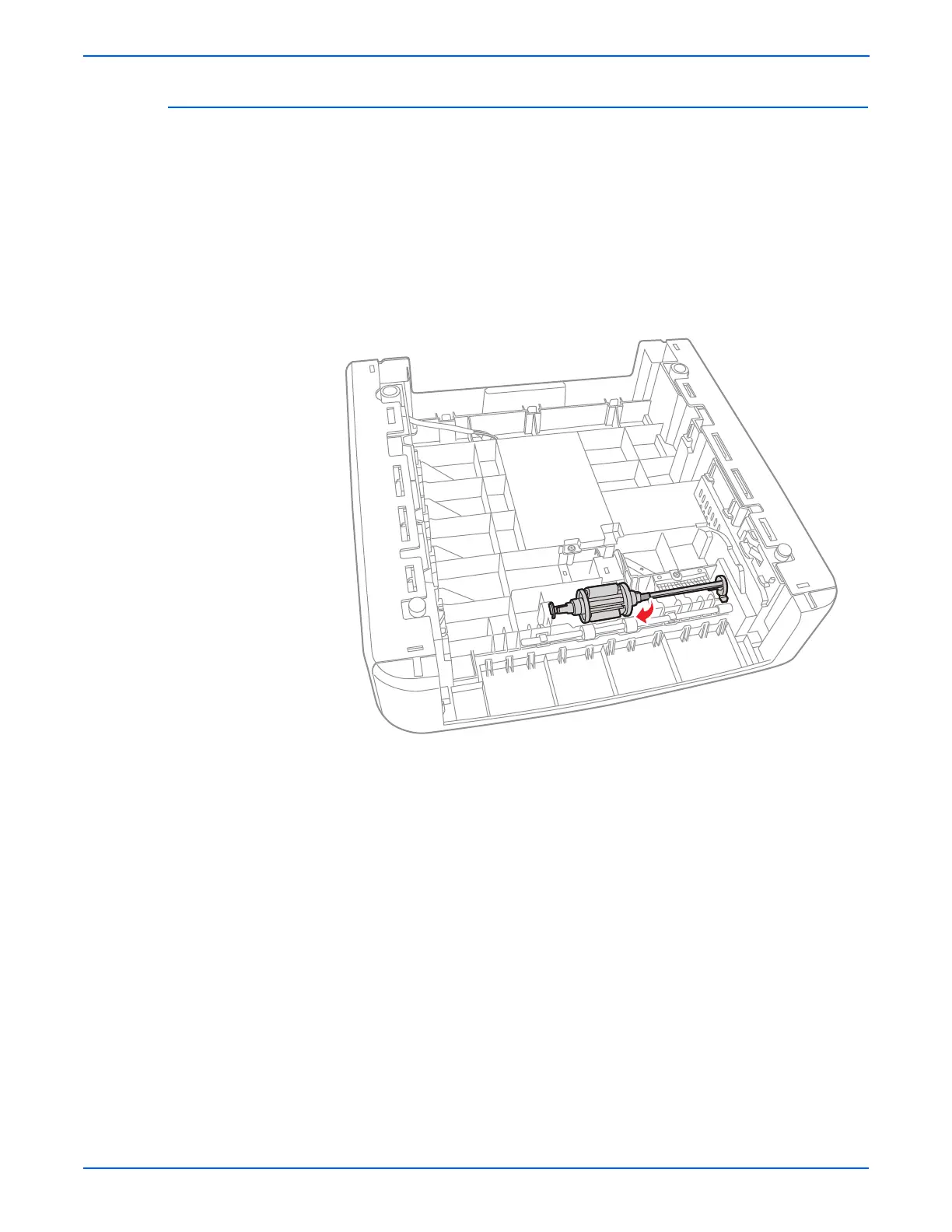

3. Release the pick up stopper latch from the pick up shaft.
