Service Parts Disassembly

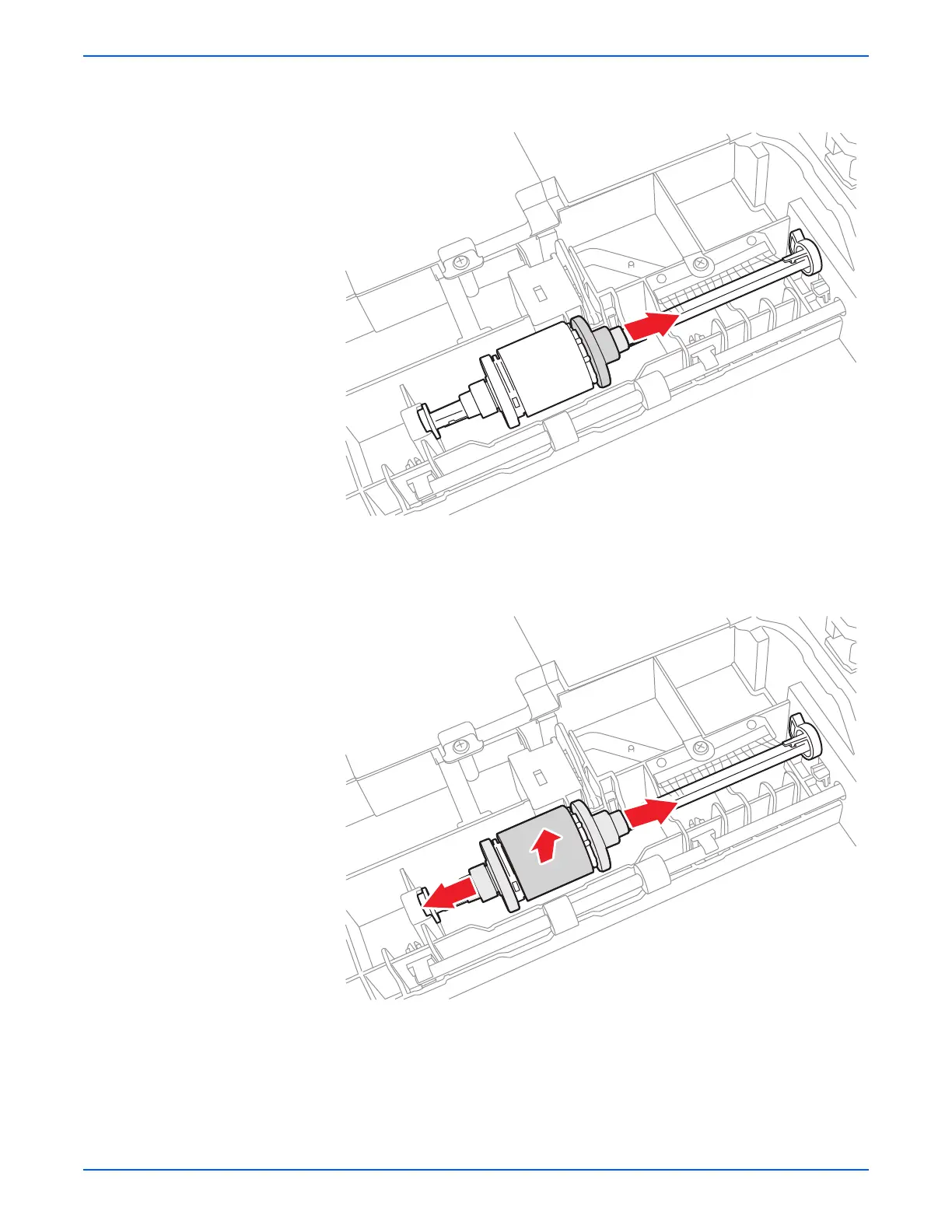

4. Slide the pick up stopper away from the pick up idle pass the groove on
the shaft.
5. Slide the pick up idles away from the pick up rubber.
6. Rotate the pick up rubber, slide it out away from the shaft and remove the
Pick Up Unit.
s3210mfp-195
s3210mfp-196
