8-36 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Lower ADF
PL6.1.5
1. Remove the Upper ADF (page 8-40).
2. Turn the ADF over with the top side facing upward.

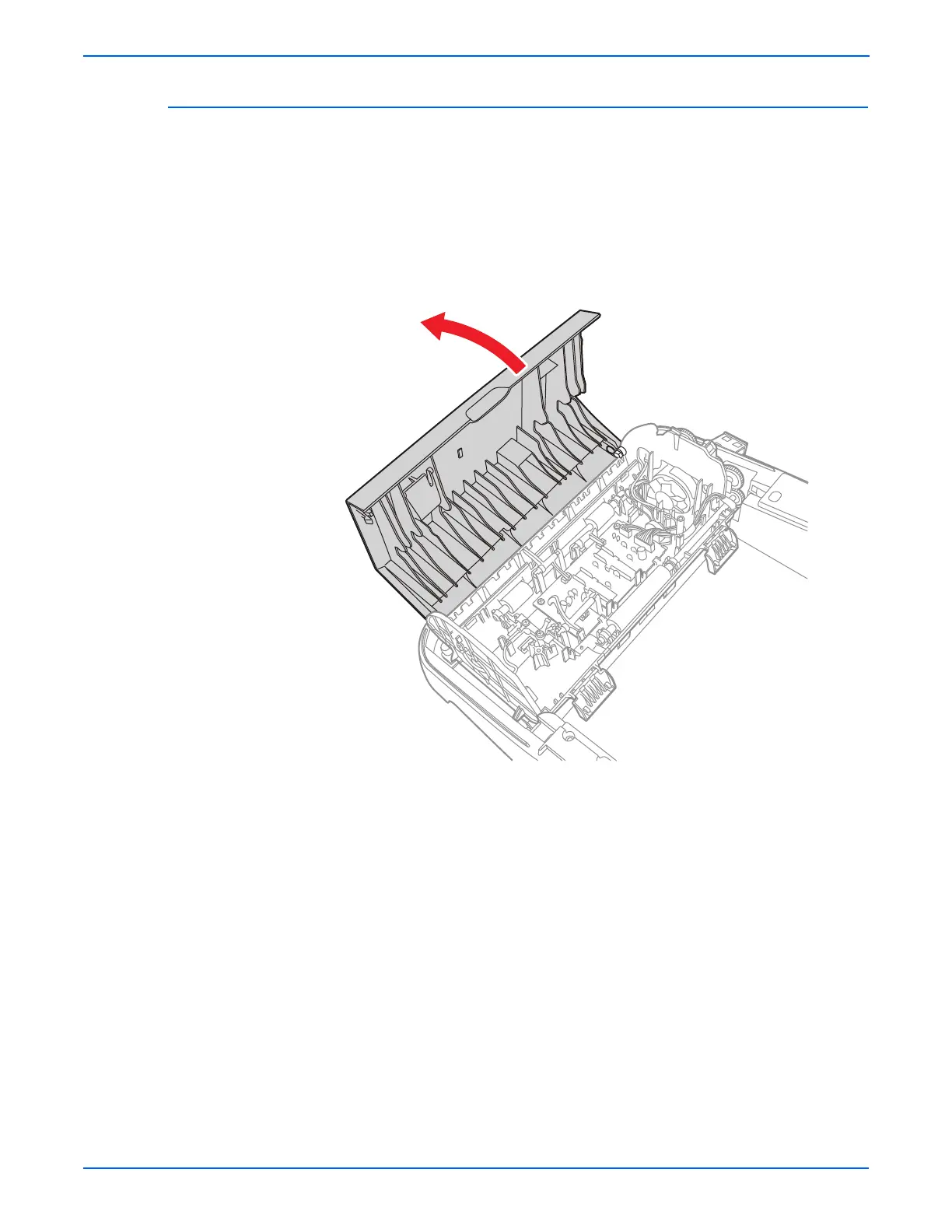

3. Open the ADF cover.
4. Pull the ADF cover toward the rear to release the notch from the ADF and
slide the ADF cover toward the right side to release the notch on the left
side.
To Next Page
