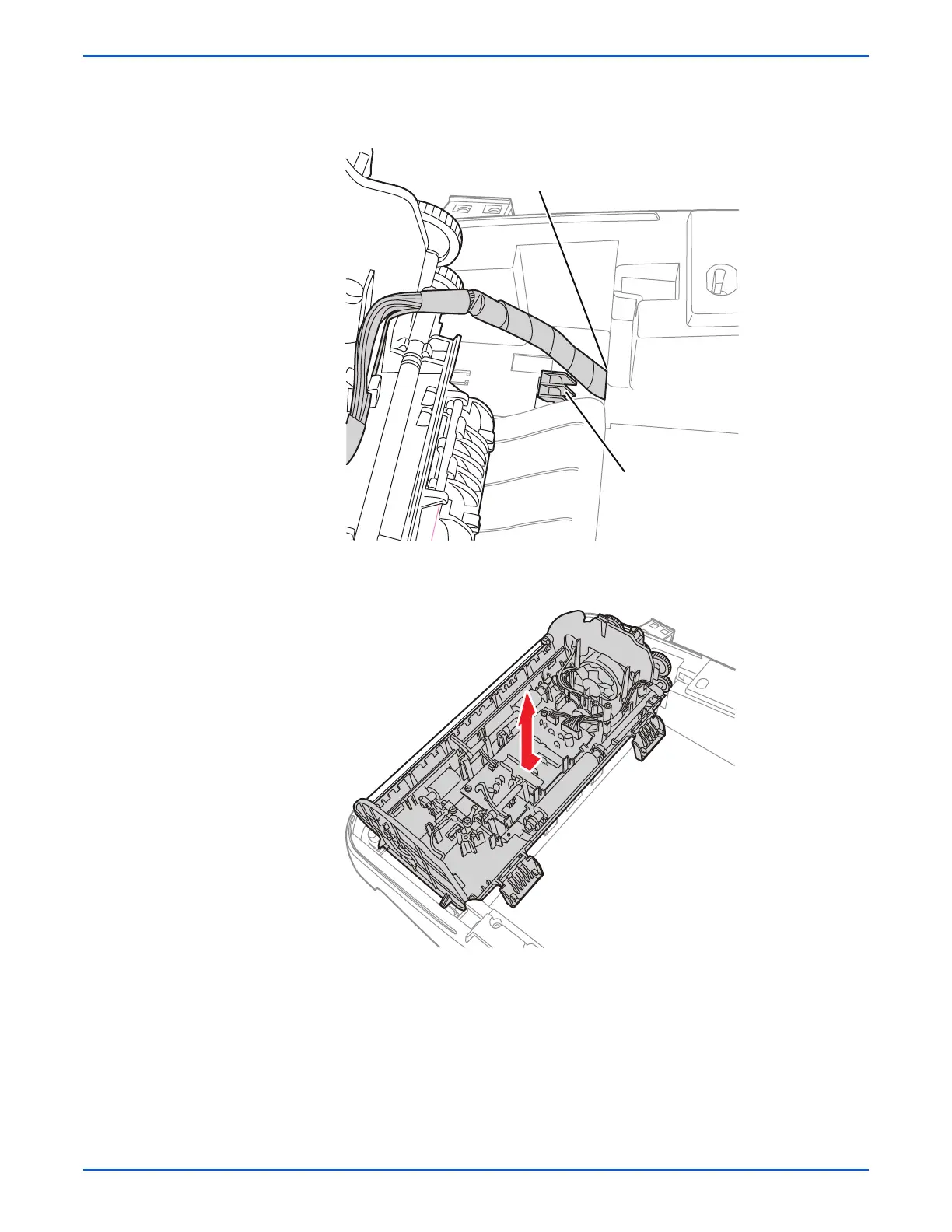

5. Push the upper ADF toward the left to release the Lower ADF from the
hook and lift the Lower ADF while routing the cable through the hole on
the platen cover.
6. Lift the Lower ADF from the platen cover.
Hole
Hook
s3210mfp-163
s3210mfp-162
