WorkCentre 3210/3220 Multifunction Printer Service Manual 10-5
Wiring

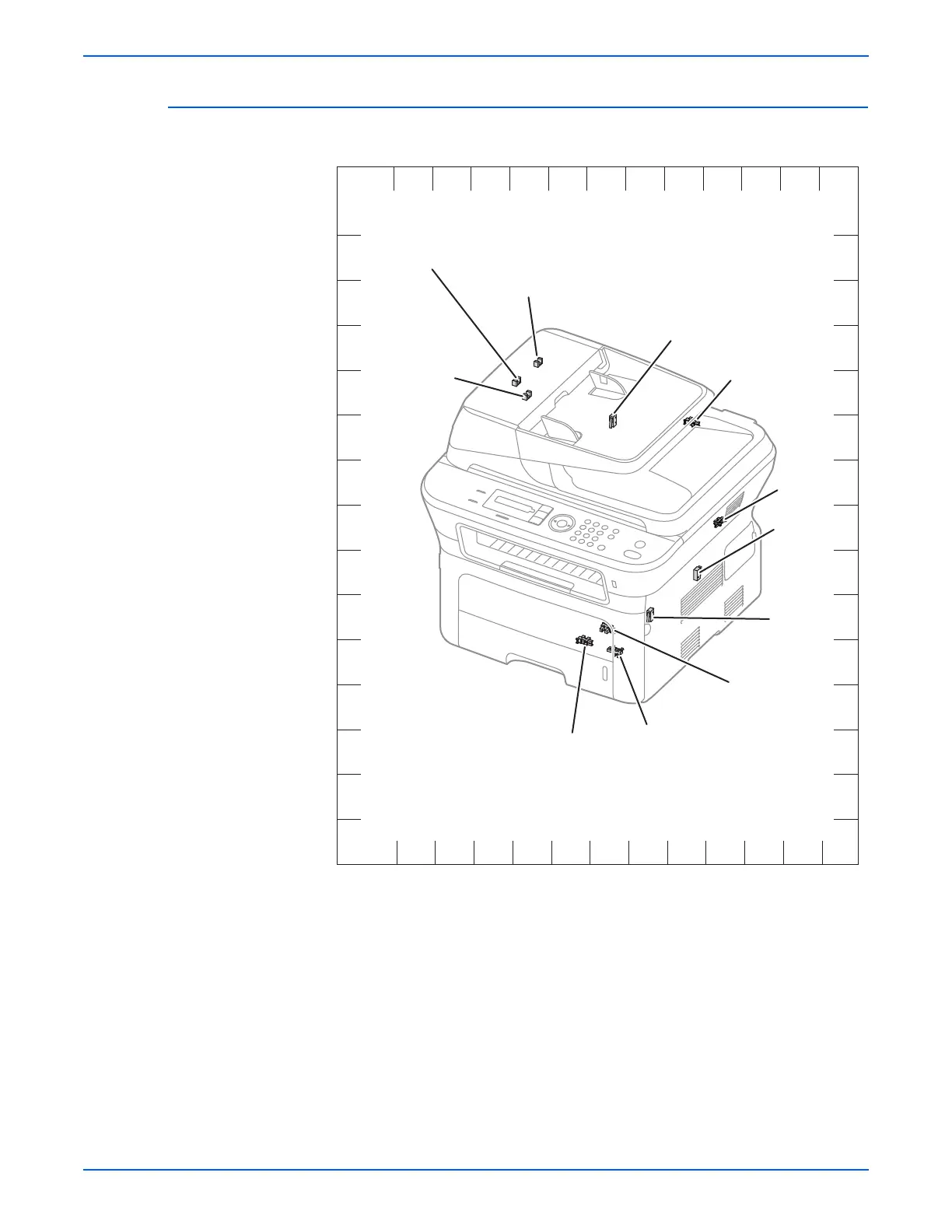

Map 3 - Sensor Locator
A
71
72
73
74
75
76
77
78
79
80
81
82
83
84
70
BCDEFGHIJKL
s3210mfp-117
ADF Exit Sensor
Exit Sensor
Outbin Sensor
Interlock Switch
Feed Sensor
Paper Empty Sensor
Duplex
Registration
Sensor
Front Cover
Open Switch
Rear Cover
Open Switch
Empty Sensor
Registration Sensor
