WorkCentre 3210/3220 Multifunction Printer Service Manual 8-53
Service Parts Disassembly
Sensor
PL6.3.1-10-9
1. Remove the Upper Platen (page 8-57).
2. Disconnect the wiring harness connector CN1.
3. Release the Sensor from the lower scan frame and remove the Sensor.

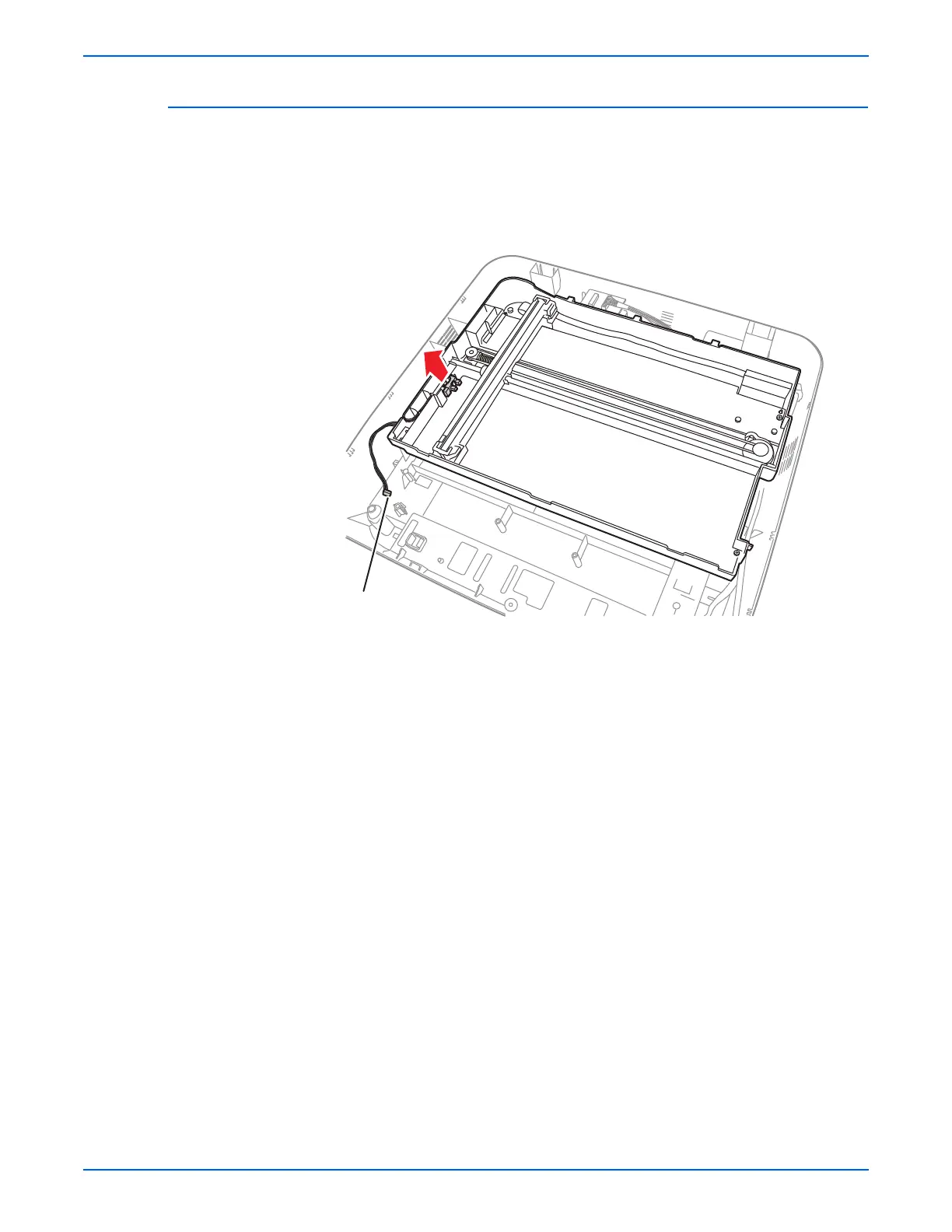

s3210mfp-174
CN1
