WorkCentre 3210/3220 Multifunction Printer Service Manual 8-41
Service Parts Disassembly
4. Turn the ADF over with the top side facing upward.
5. Open the ADF cover.
6. Remove 2 screws (12 mm, silver) that secure the Upper ADF.
7. Push the Upper ADF toward the left to release the 2 latches.
8. Lift and remove the Upper ADF.

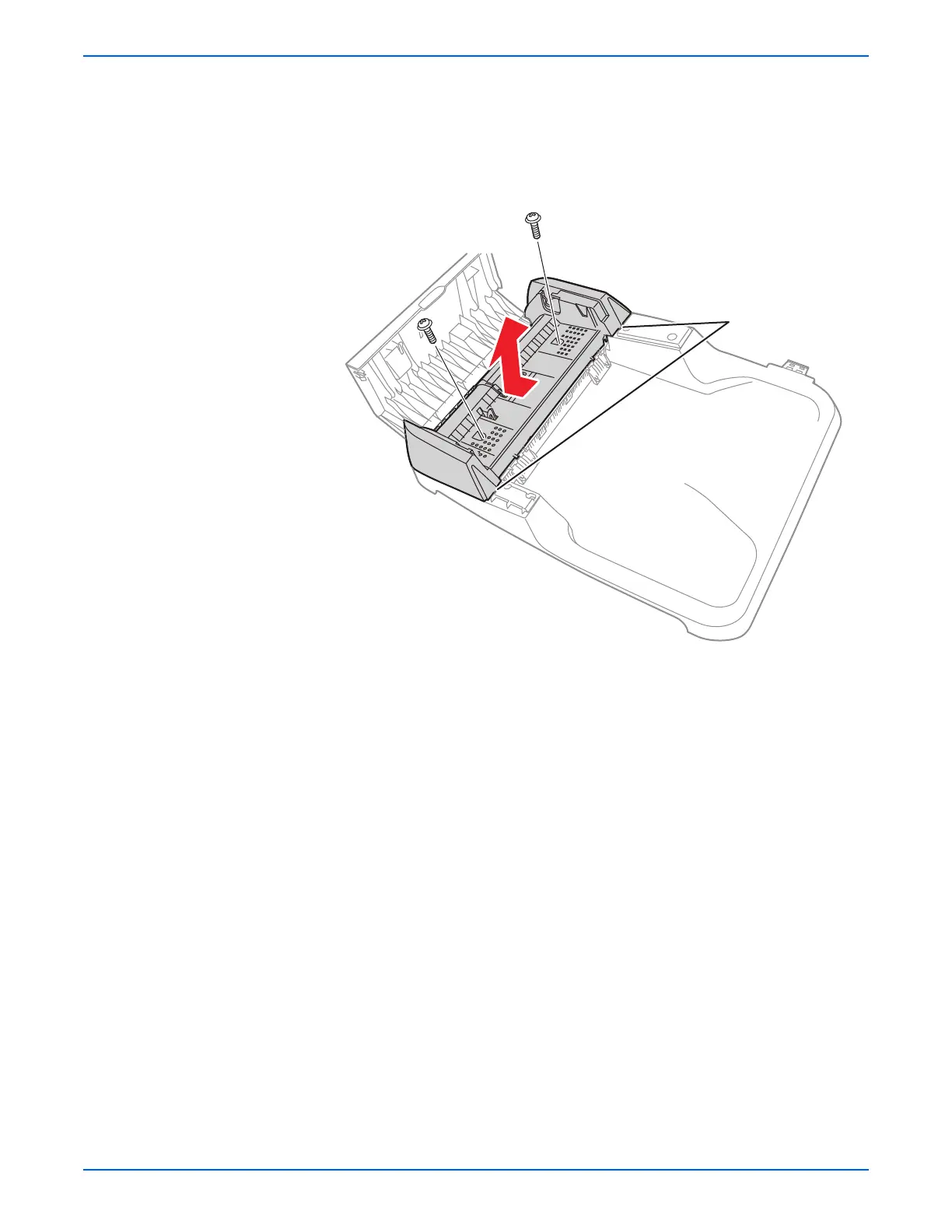

s3210mfp-157
Latch Locations
