WorkCentre 3210/3220 Multifunction Printer Service Manual 8-103
Service Parts Disassembly

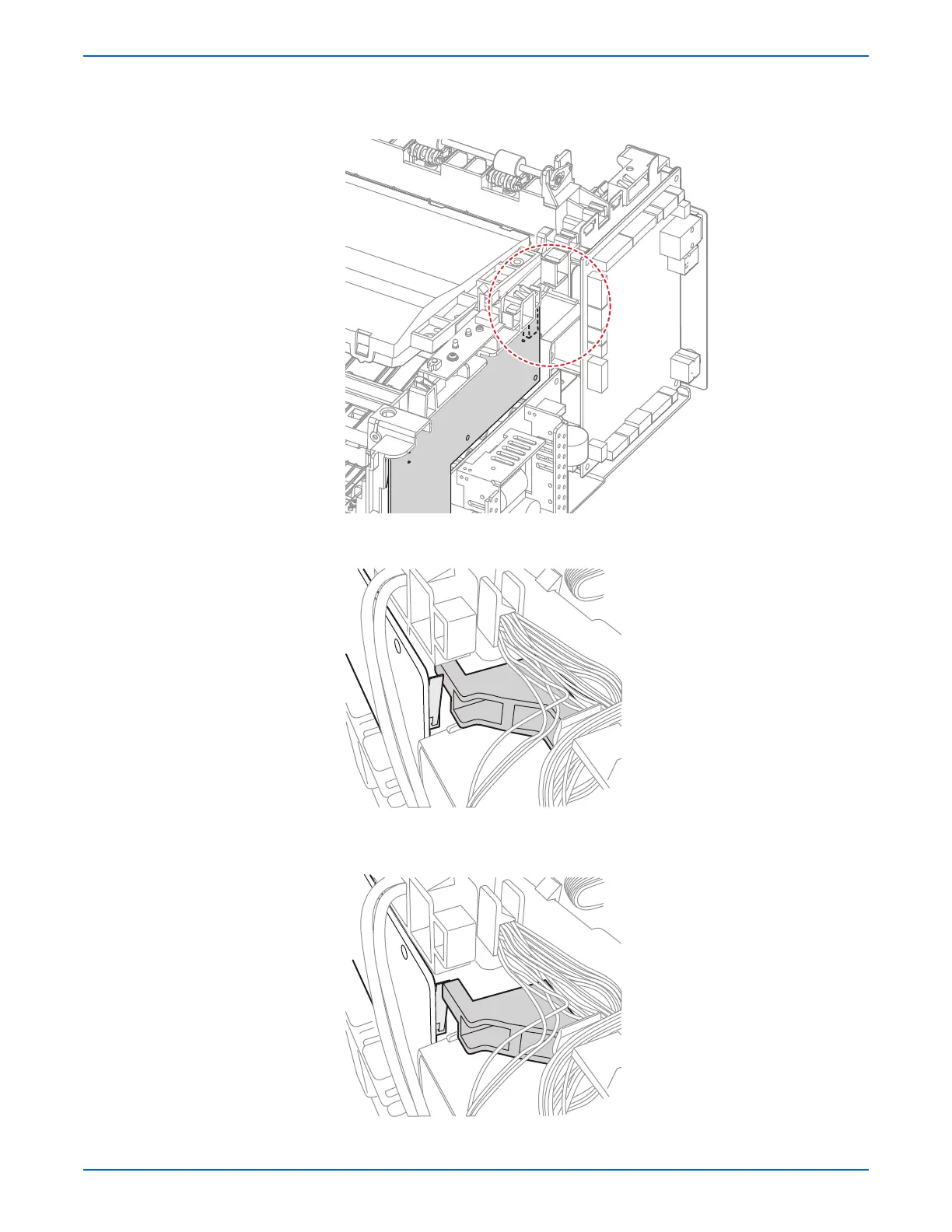

Open the Rear Cover to allow the actuator to move freely.
Make sure the Switch Actuator does not interfere with the Link Cover Rear.
Rear Link Cover with MEA Unit Guide Rear in Down Position (Correct)
Rear Link Cover with MEA Unit Guide Rear in Up Position (Incorrect)
