8-74 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

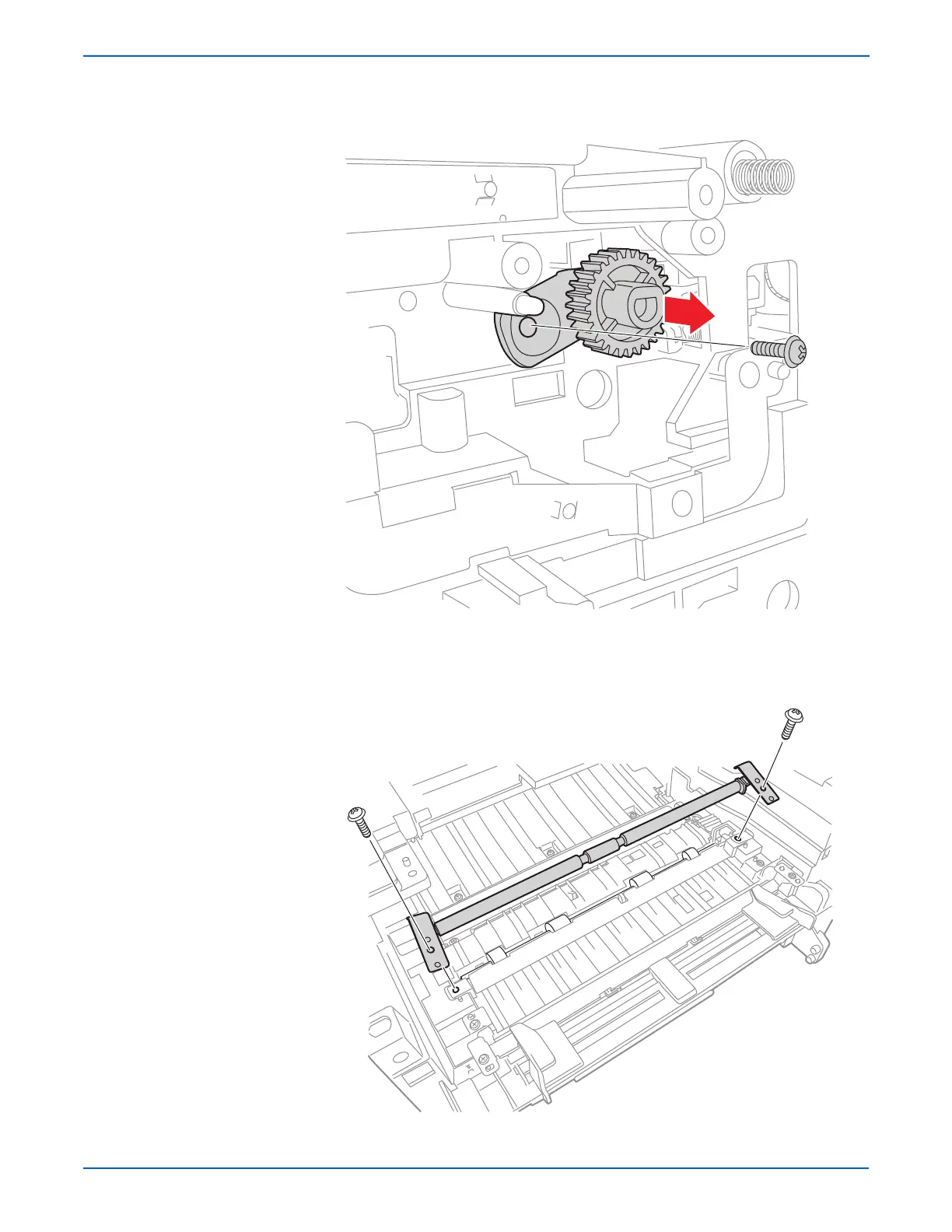

11. Remove the gear and 1 screw (12 mm, silver) that secures the regi holder.
12. Remove the regi holder.
13. Remove 2 screws (12 mm, silver) that secure the idle feed shaft.
14. Remove the feed shaft together with the springs and bushings.
