2-8 WorkCentre 3210/3220 Multifunction Printer Service Manual
Theory of Operation
Separation Method
Individual sheets are separated from the friction pad in the tray. When paper
feeds into the printer, it passes over the Feed Pad Assembly that uses a
spring loaded friction pad to separate the sheets of paper.
Duplex Unit

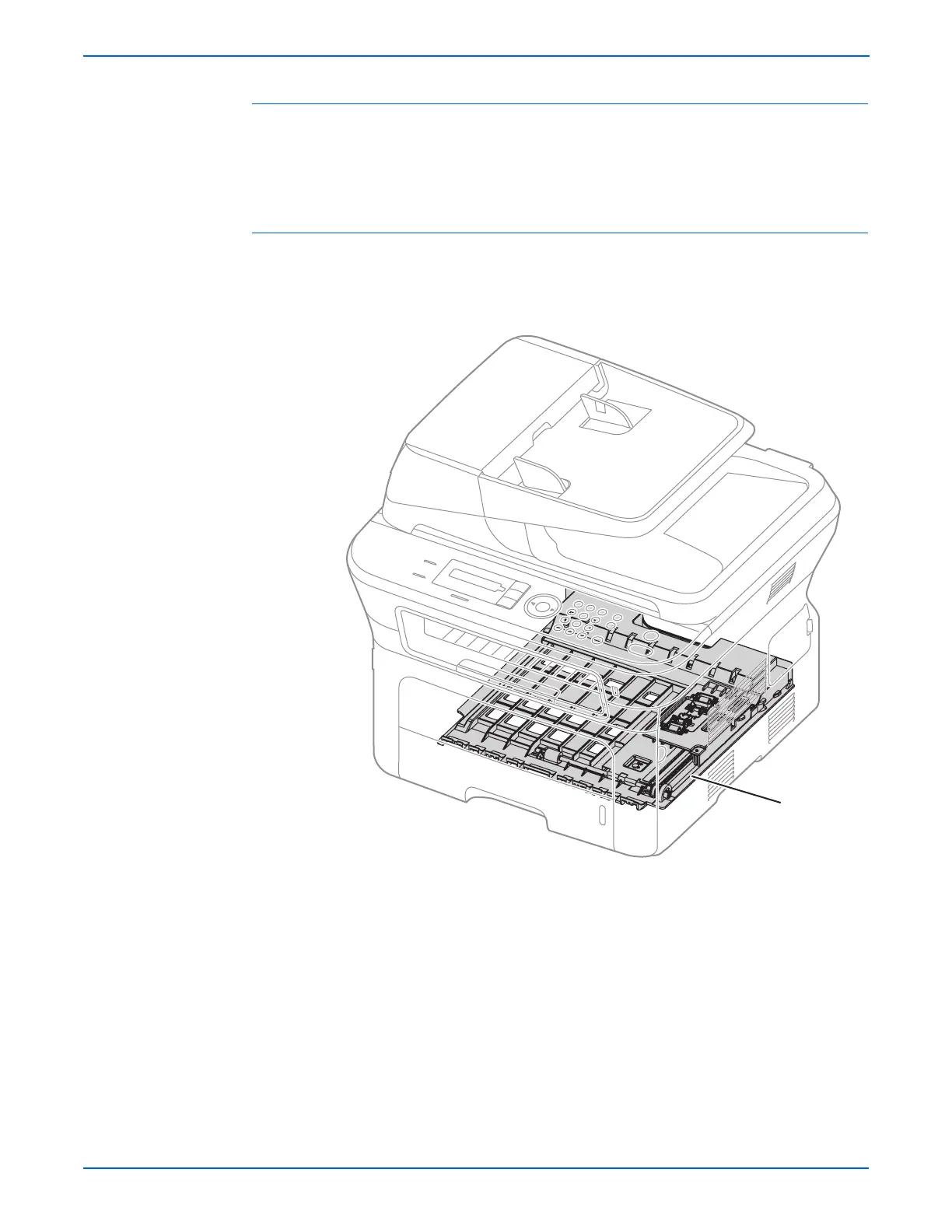

The Duplex Unit, available on the WorkCentre 3220 only, uses a side feeding
method. When a jam occurs in the front or rear part of the printer, the Duplex
Unit can be removed to access the jam area.
