WorkCentre 3210/3220 Multifunction Printer Service Manual 2-19
Theory of Operation

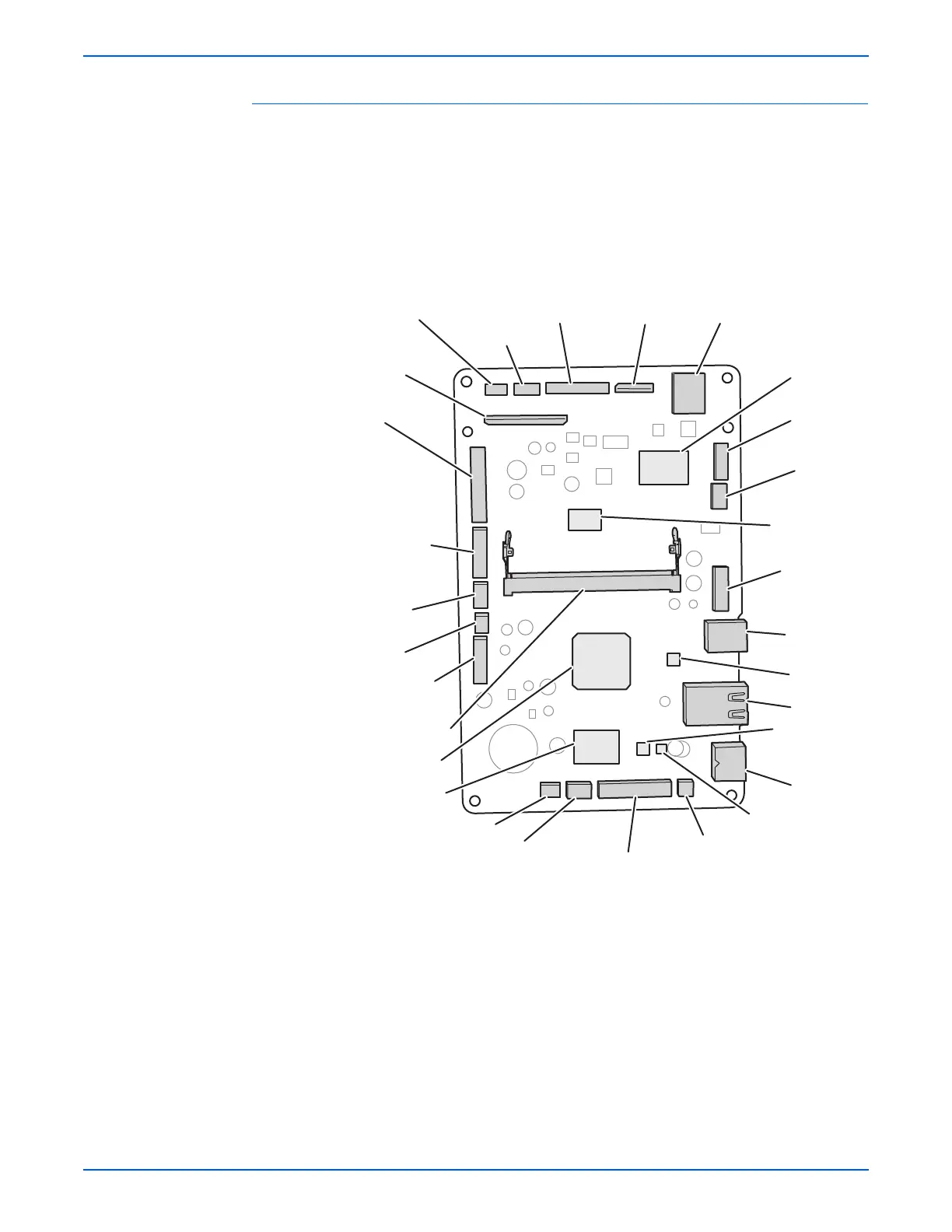

Main Controller Board
The Main Controller Board consists of the CPU and printer control functions.
The CPU functions as the bus control, I/O handling, drivers, and PC interface.
The Main Controller Board sends the current image video data to the Laser
Unit and manages the electrophotographic printing process. Circuits on the
Main Controller Board drive the Main Motor (paper feed), Clutch, Pre-Transfer
Lamp, Heat Lamp, and Fan.
The signals from the Paper Feed Sensor and Paper Empty Sensor are input
to the Main Controller Board.
Outbin Tray Full Sensor
Paper Width Sensor
Power Supply
(SMPS)
Main Fan
Developer
Unit CRUM
Paper Empty
Sensor/Duplex
Registration
Sensor/Paper
Feed Sensor
HVPS
DC Unit Fan/Interlock Switch
Modem
Fuser
Laser Unit CISMDi
rect USB Interface
Main Motor/Registration Clutch/Pick-Up Solenoid
Power Supply Fan
Control Panel
Scanner Motor
ADF Control Board
USB Device
Interface
Network IC
Optional Tray
Serial Flash
EEPROM
DDR2 SODIMM
CHORUS3
NOR Flash
USB 2.0 IC
DDR2 SDRAM
Ethernet
s3210mfp-246

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
