WorkCentre 3210/3220 Multifunction Printer Service Manual 8-7
Service Parts Disassembly

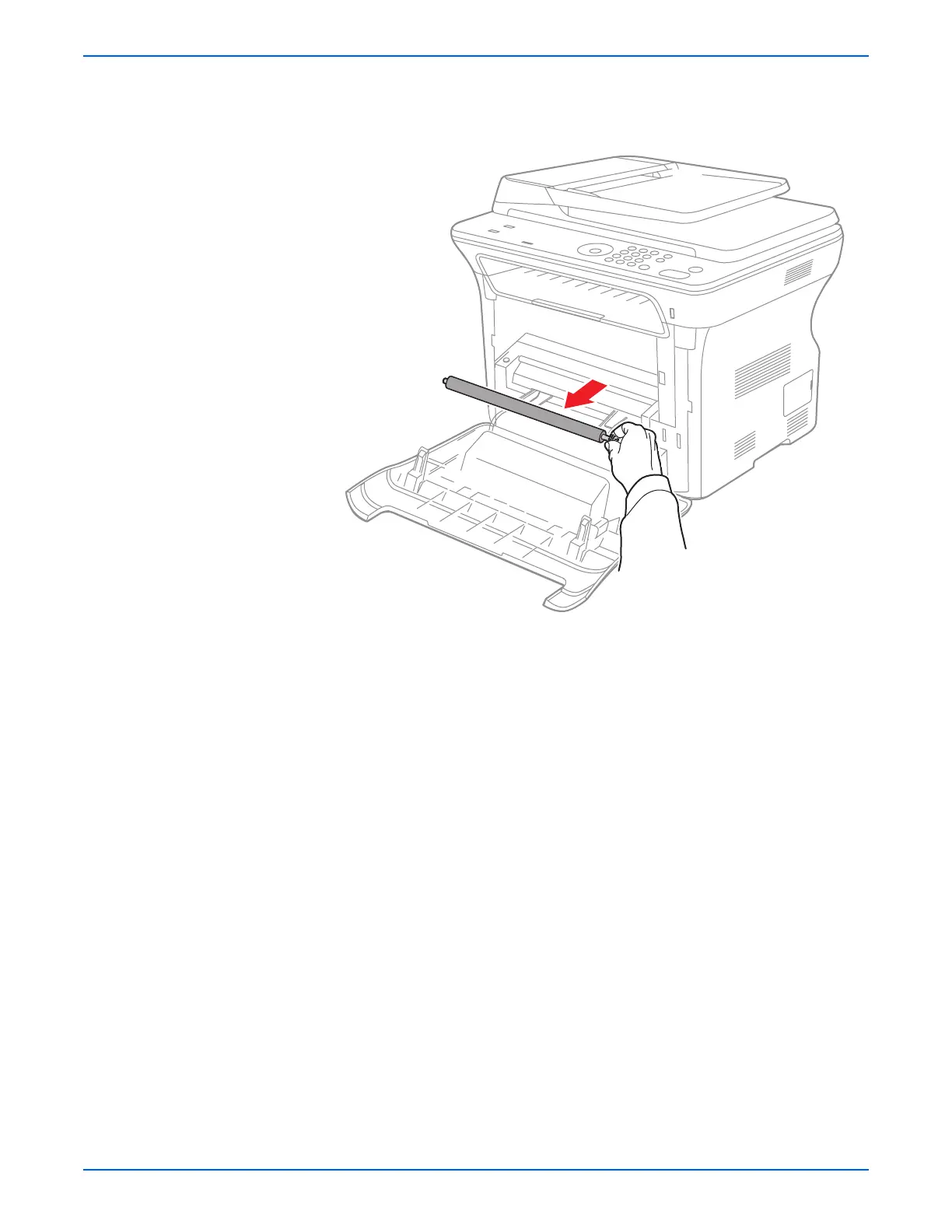

3. Slide the Transfer Roller toward the right side to release the Roller from
the left holder and carefully lift the Transfer Roller up.
4. Remove the Transfer Roller.
Do not touch the sponge area of the Transfer Roller during
installation.
To Next Page
