8-18 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

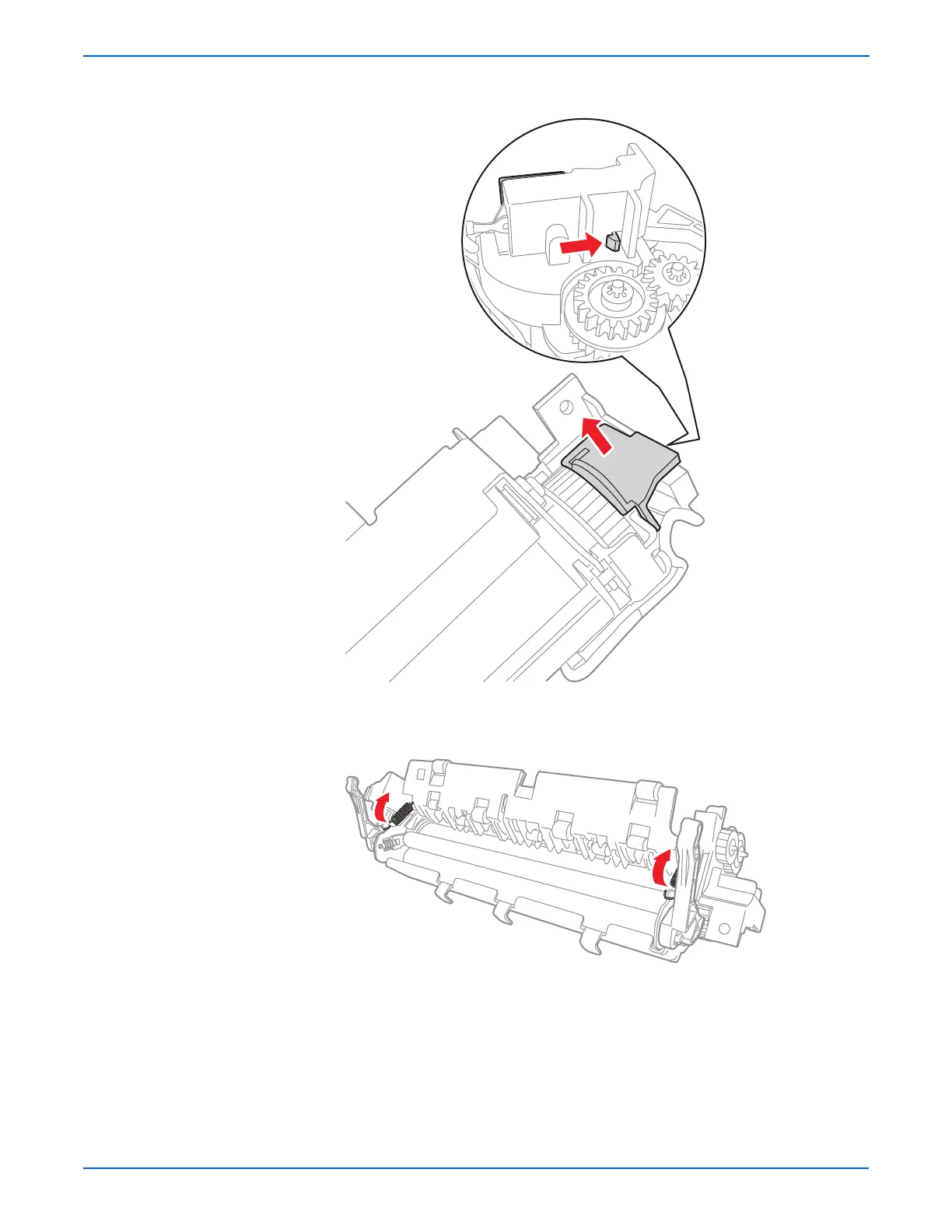

3. Release the tab and remove the left lamp cap.
4. Unhook the left and right springs that secure the fuser frame and the fuser
cover.
s3210mfp-029
s3210mfp-030
