8-26 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

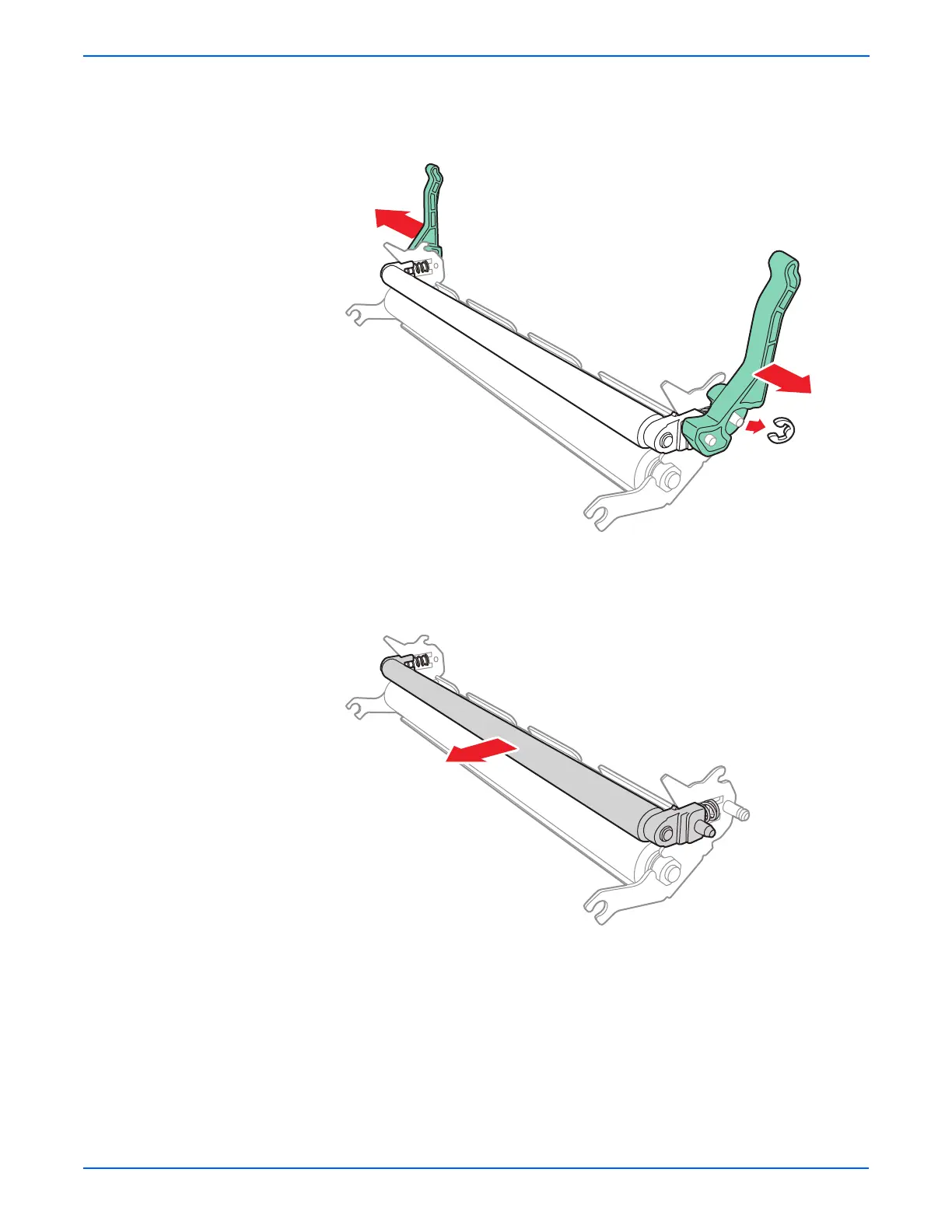

5. Release the e-ring that the secures the jam link lever.
6. Remove the jam link lever.
7. Repeat steps 5-6 for the other jam link lever.
8. Slide the Small Pressure Roller together with the bushings and the
springs away from the fuser frame.
9. Remove the Small Pressure Roller.
s3210mfp-223
s3210mfp-037
