WorkCentre 3210/3220 Multifunction Printer Service Manual 8-29
Service Parts Disassembly
5. Remove the fuser frame with the pressure rollers from the fuser cover.
6. Disconnect the 2 lamp connectors CN51 & CN52.
7. Remove 2 screws (10 mm, black without washer) that secure the halogen
lamp to the fuser cover.
Note
Hold the Halogen Lamp by the ends so there is no transfer of oil from the
hands onto the lamp, which could damage the Lamp.
8. Slide the Halogen Lamp out away from the heat roller.

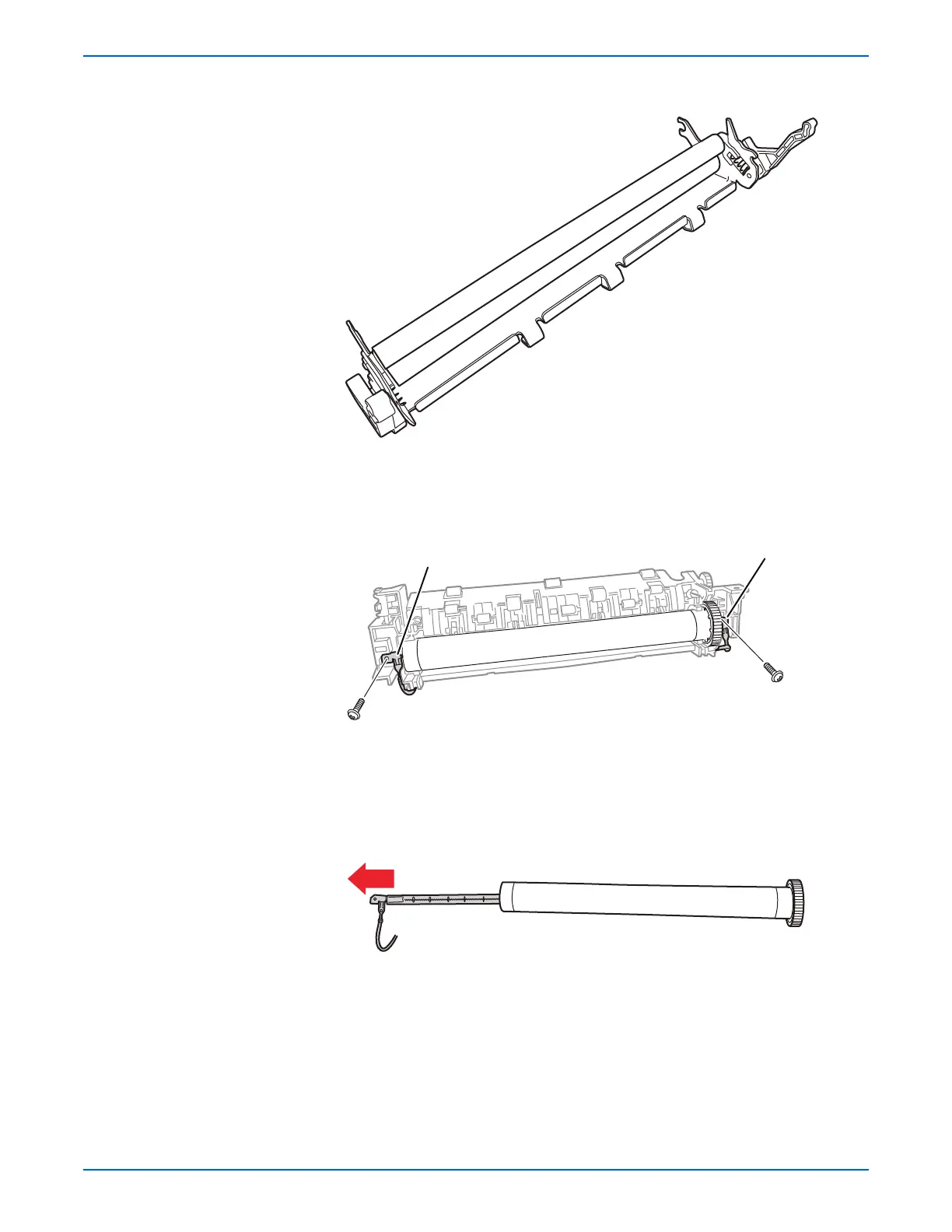

s3210mfp-031
s3210mfp-032
CN51
CN52
s3210mfp-033
