8-68
Wo
rkCentre 3210
/
3220 Mu
ltifunction P
rinter Service Manu
al

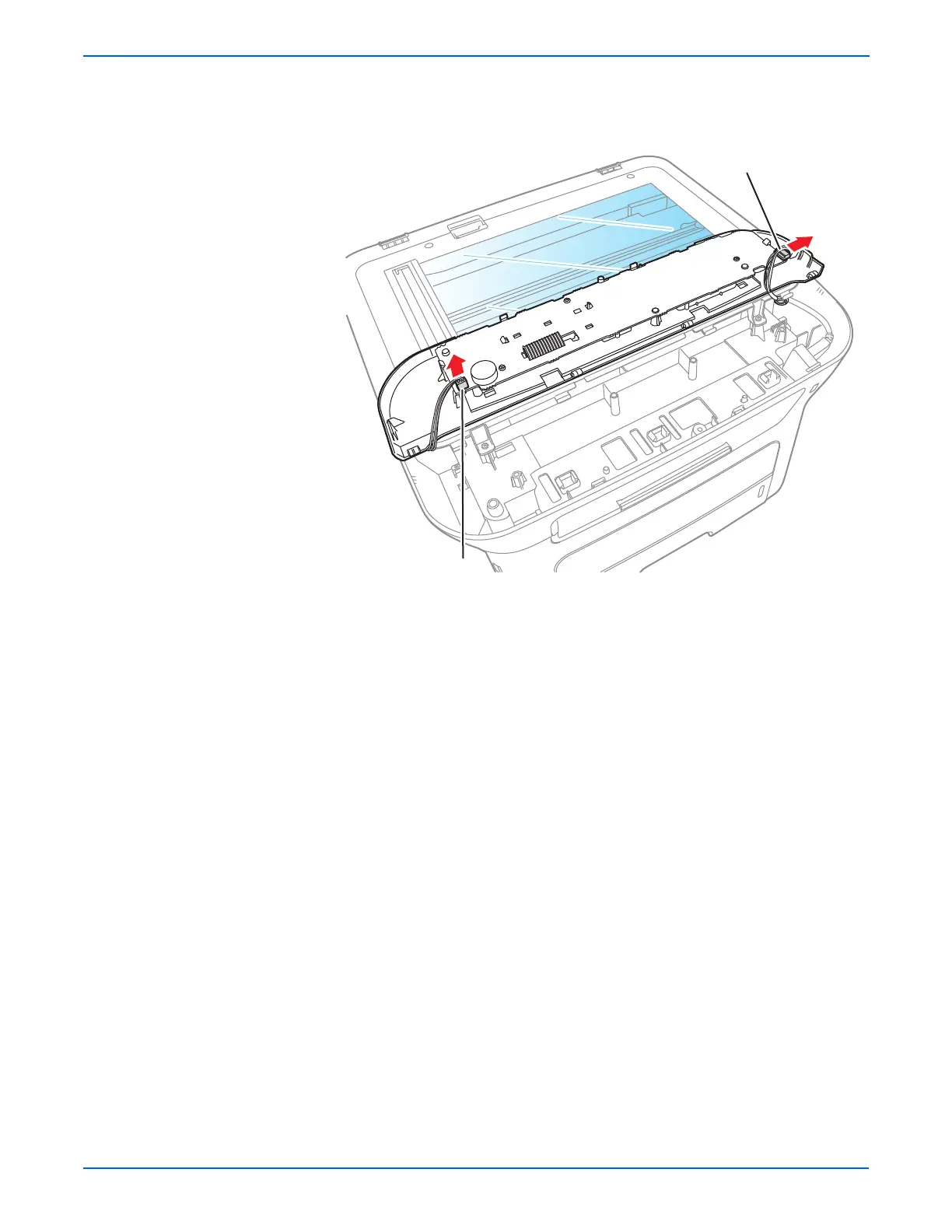

Service Parts Disassembly
4.
T
ur
n th
e Contr
ol P
an
el over and disc
onnect the
wir
ing har
ness
connect
ors CN
1, CN4, an
d CN5.
5.
Remov
e
the Cont
rol P
a
nel.
CN1
CN4, CN5
s
3210mfp-209
281
283
