Traditional tank calculations
ADM003GVAE1005 285
In the integrated
product and water
table mode, The
product table begins
were the water table
ends

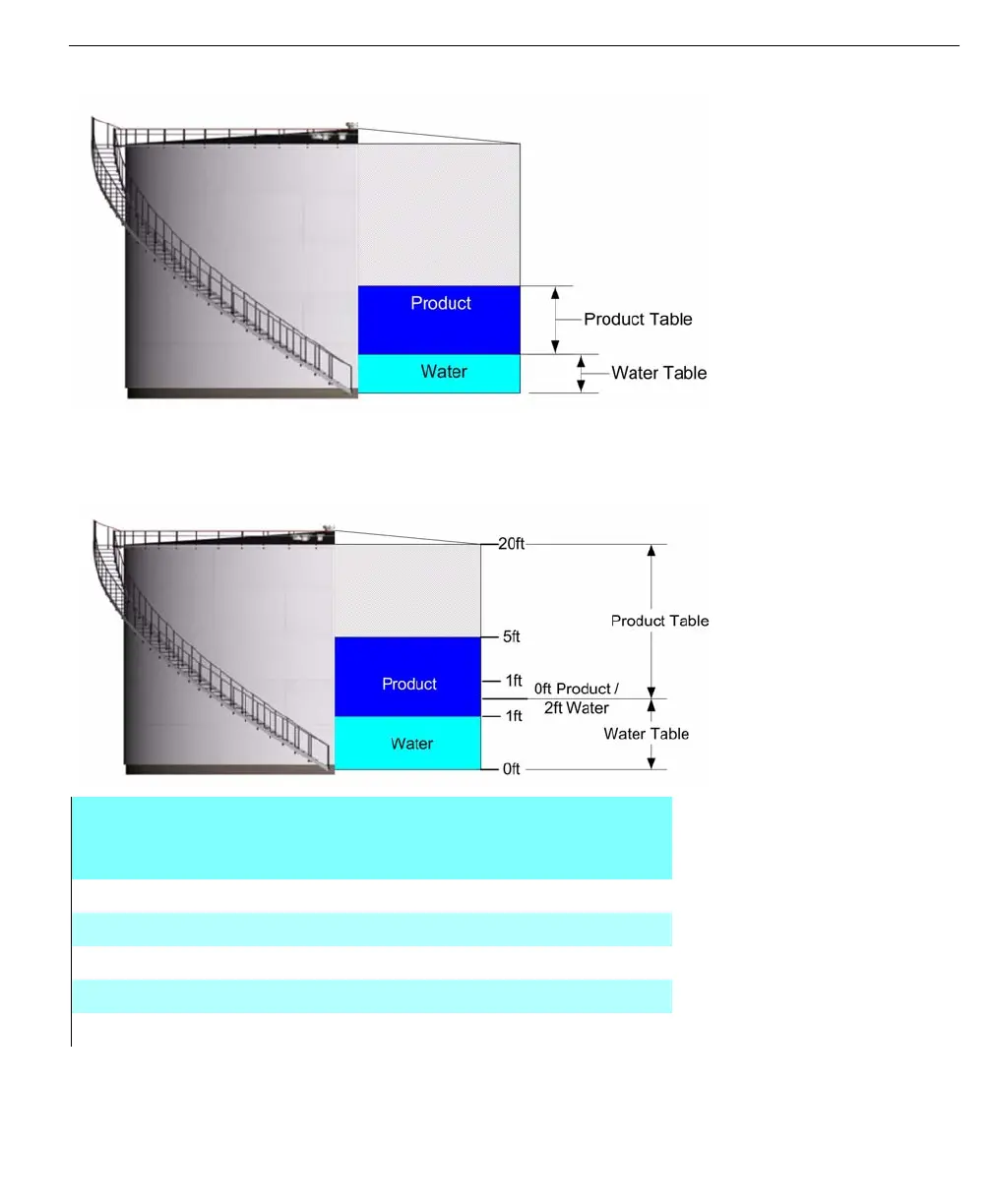

Example 1
Water level lower than the top point in the water table:
Example 1 shows how
the product and water
volumes are calculated
when the water level is
less than the water
table
• Measured product level = +5ft
• Measured water level = +1ft
From the product table, the product volume = 5000 gal
Product Table Water Table
Product Level Product Vol Water Level Water Vol
0000
1ft 1000 gal 1ft 1000 gal
2ft 2000 gal 2ft 2000 gal
5 ft 5000 gal
20 ft 20,000 gal
To Next Page
