OPERATING THE TRANSCEIVER
USING A CROSSPATCH
82 ENVOY™ TRANSCEIVER REFERENCE MANUAL
Using a crosspatch
Overview of the 3031 Crosspatch
The 3031 Crosspatch is a device that connects an HF communication system with a
VHF or UHF communication system.
NOTE: For details on installing the crosspatch and its operation, please see the
documentation provided with the device.
NOTE: You must select the 3031 Crosspatch as the peripheral device for the
RFU 15-way connector in User Data > Peripherals.
The operating mode of the crosspatch may be controlled directly by the transceiver,
or by using DTMF commands on a DTMF-capable VHF/UHF transceiver.
The crosspatch may be active, on standby, or switched off. The status of the
crosspatch is shown in the title bar, and you can set the status to be shown in one of
the status areas.

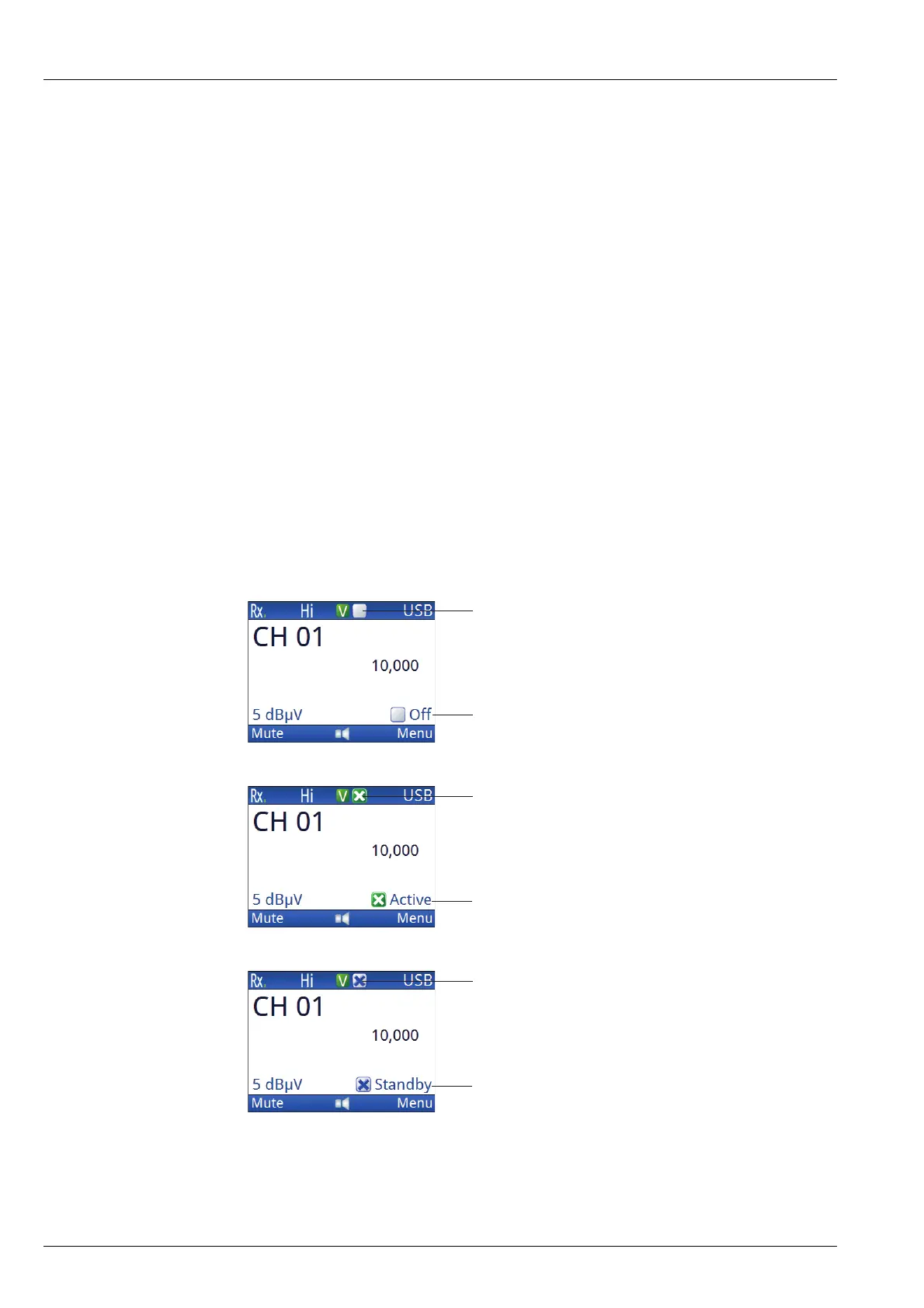

Figure 19: Crosspatch status
If the crosspatch is selected as the peripheral device for the 15-way connector, but has
been disconnected, the crosspatch indicator is no longer shown in the title bar of the
channel screen.
crosspatch indicator
Off
crosspatch indicator
Active
crosspatch indicator
Standby
crosspatch state
crosspatch state
crosspatch state
