CONNECTORS

CONNECTORS ON THE DESK CONSOLE

372 ENVOY™ TRANSCEIVER REFERENCE MANUAL

Connectors on the desk console

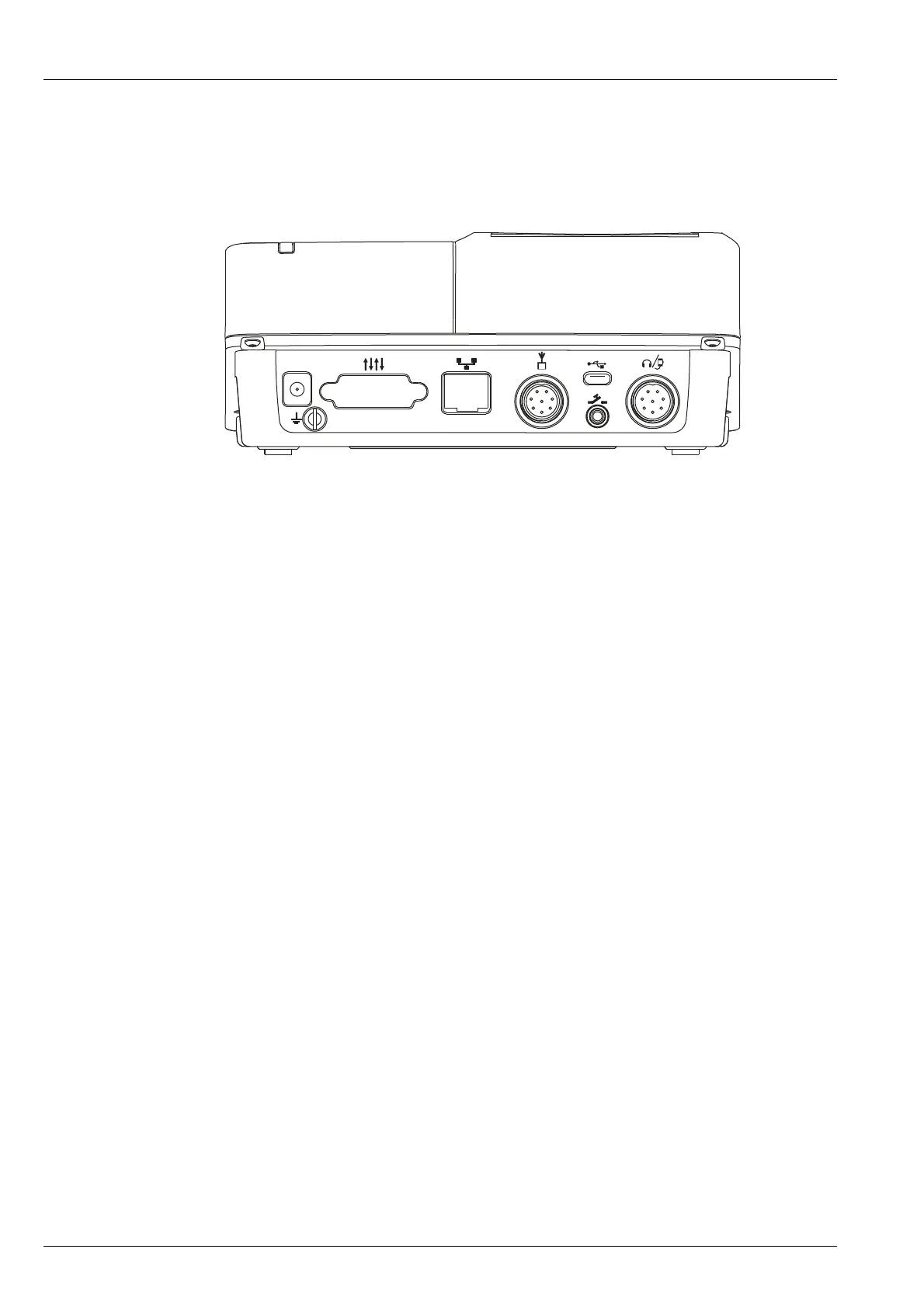

Figure 80: Back panel of the 2230 Desk Console

Related links:

DC supply connector on page 372

15-way GPIO connector on page 373

Ethernet connector on page 374

Transceiver connector on page 374

USB connector on page 375

Foot-switched PTT connector on page 375

8-way connector on page 376

Headphone connector on page 377

DC supply connector

12 V DC

The DC supply connector is on the back panel of the desk console. It is used with a

12 V DC power supply to provide power to the desk console when it is connected via

Ethernet to the RFU.

12 V DC
