INSTALLATION
MOBILE STATIONS
390 ENVOY™ TRANSCEIVER REFERENCE MANUAL
Mobile stations
Overview of mobile stations
A mobile station typically consists of an RFU, a handset, a 12 V DC power supply
(battery), an antenna, control and accessory devices, ancillary equipment, and
appropriate connecting cables. The antenna is connected to the transceiver by coaxial
cable. An automatic tuning antenna also requires a control cable connected to the
transceiver.
When space is limited in a mobile situation, the transceiver may be located in the boot
or behind/under a seat.

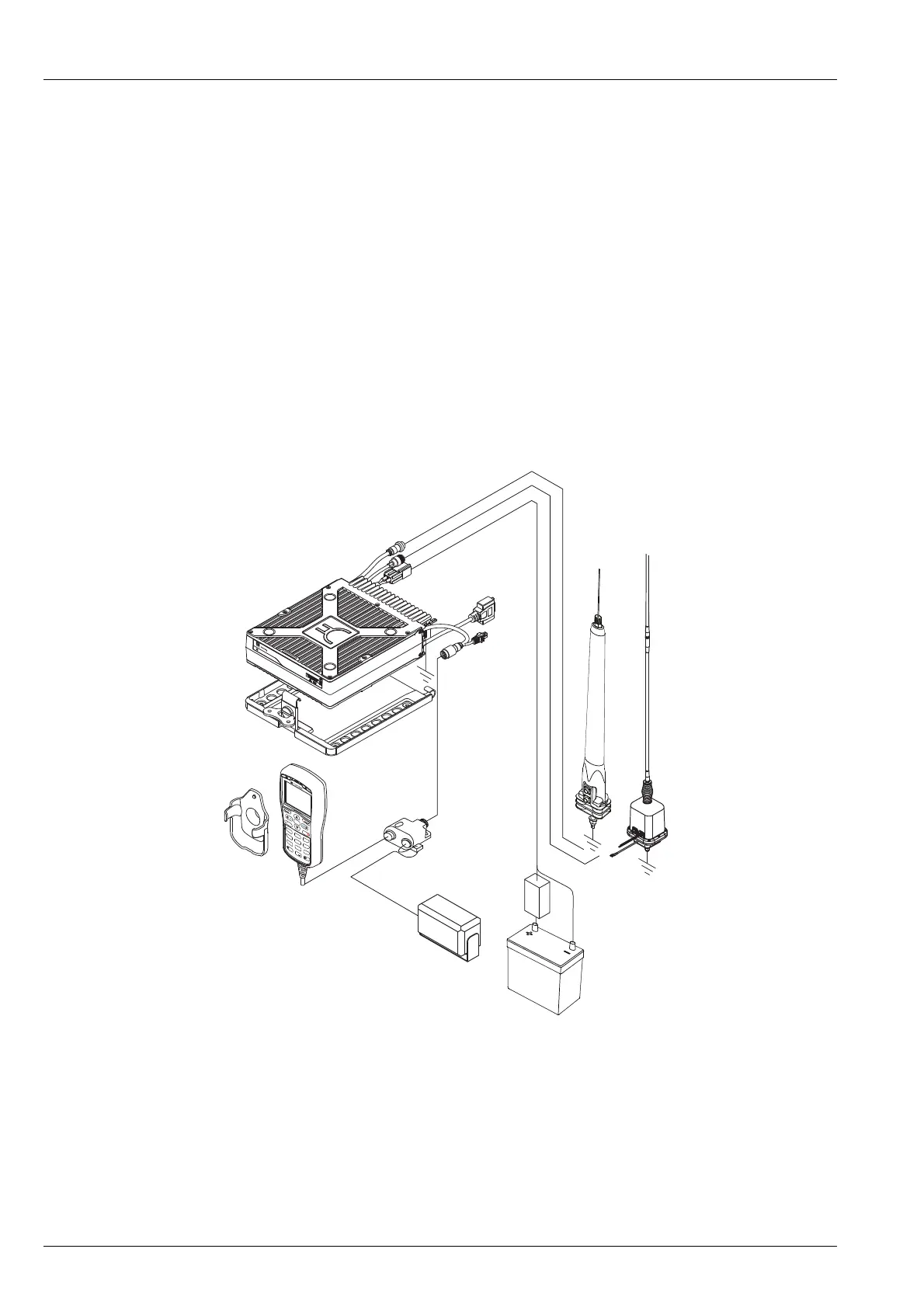

Figure 84: Typical mobile station
NOTE: A range of ancillary equipment may be connected to the Envoy™
Transceiver using the 6-way and 15-way connectors at the rear of the
RFU.
