CONNECTORS
CONNECTORS ON THE RFU
364 E
NVOY™ TRANSCEIVER REFERENCE MANUAL
DC supply connector
The DC supply connector is on a flying lead located on the right side of the back panel.
The DC supply connector supplies power to the transceiver system and ancillary
products.
RF connector
The RF connector is on a flying lead located on the right side of the back panel. It is
used to connect to an antenna.
Fan connector
The fan connector is on a flying lead located at the top left of the back panel. The fan
connector is used when additional cooling is required for the heatsink, for example,
for continuous data communication.

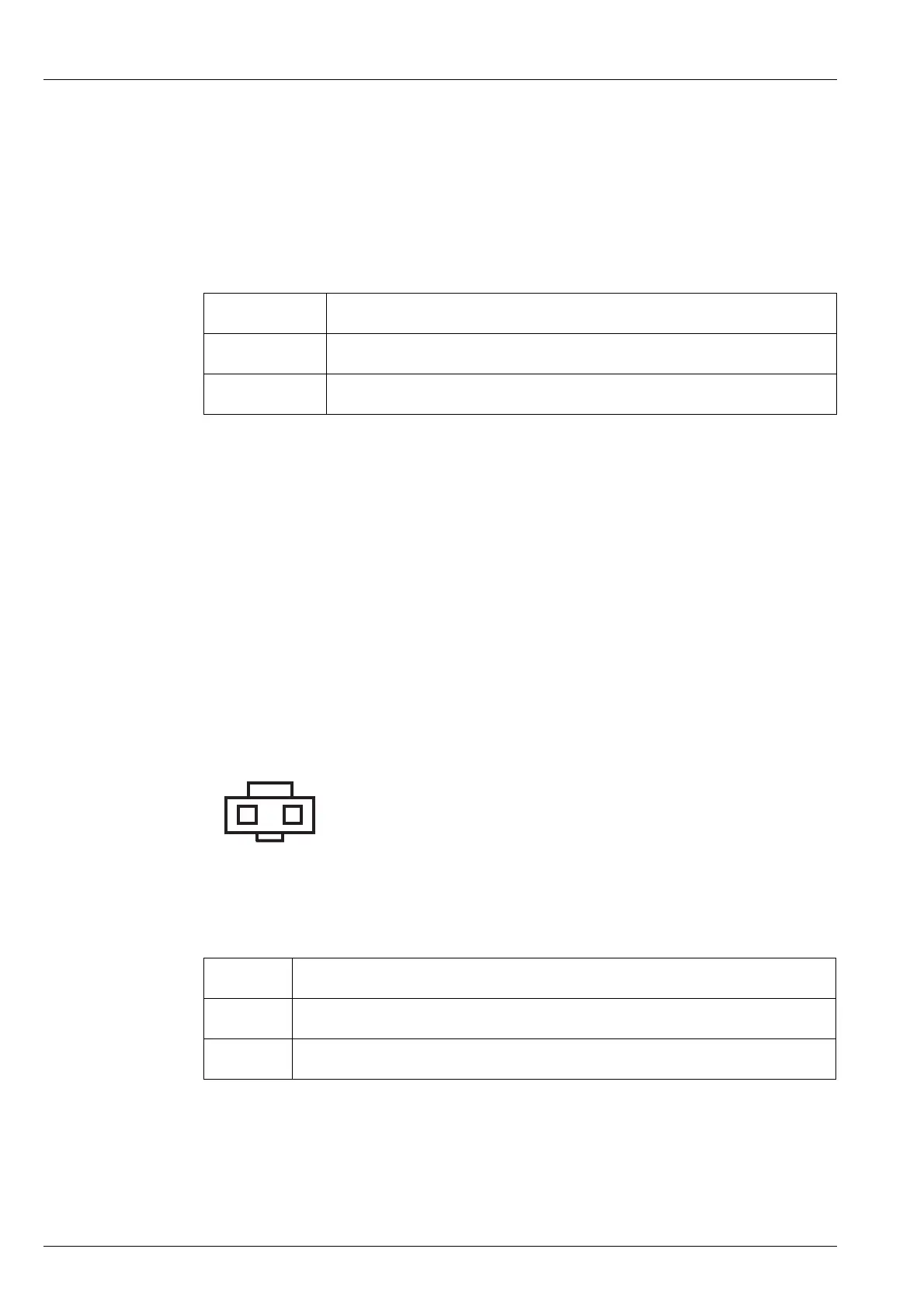

Figure 75: Front view of the fan connector
Table 17: Pinouts of the DC supply connector
Pin Function
+ +13.6 V nominal (10.8 to 16 V DC)
– Ground (0 V)
Table 18: Pinouts of the fan connector
Pin Function
– 0 V (when fan is activated)
+ +13.6 V nominal
– +
