CONNECTORS

CONNECTORS ON THE RFU

NVOY™ TRANSCEIVER REFERENCE MANUAL 363

Antenna control connector

The antenna control connector is on a flying lead located on the right side of the back

panel. The antenna control connector connects to automatic tuning antennas. It

supplies power to the antenna and transmits control signals to and from the antenna.

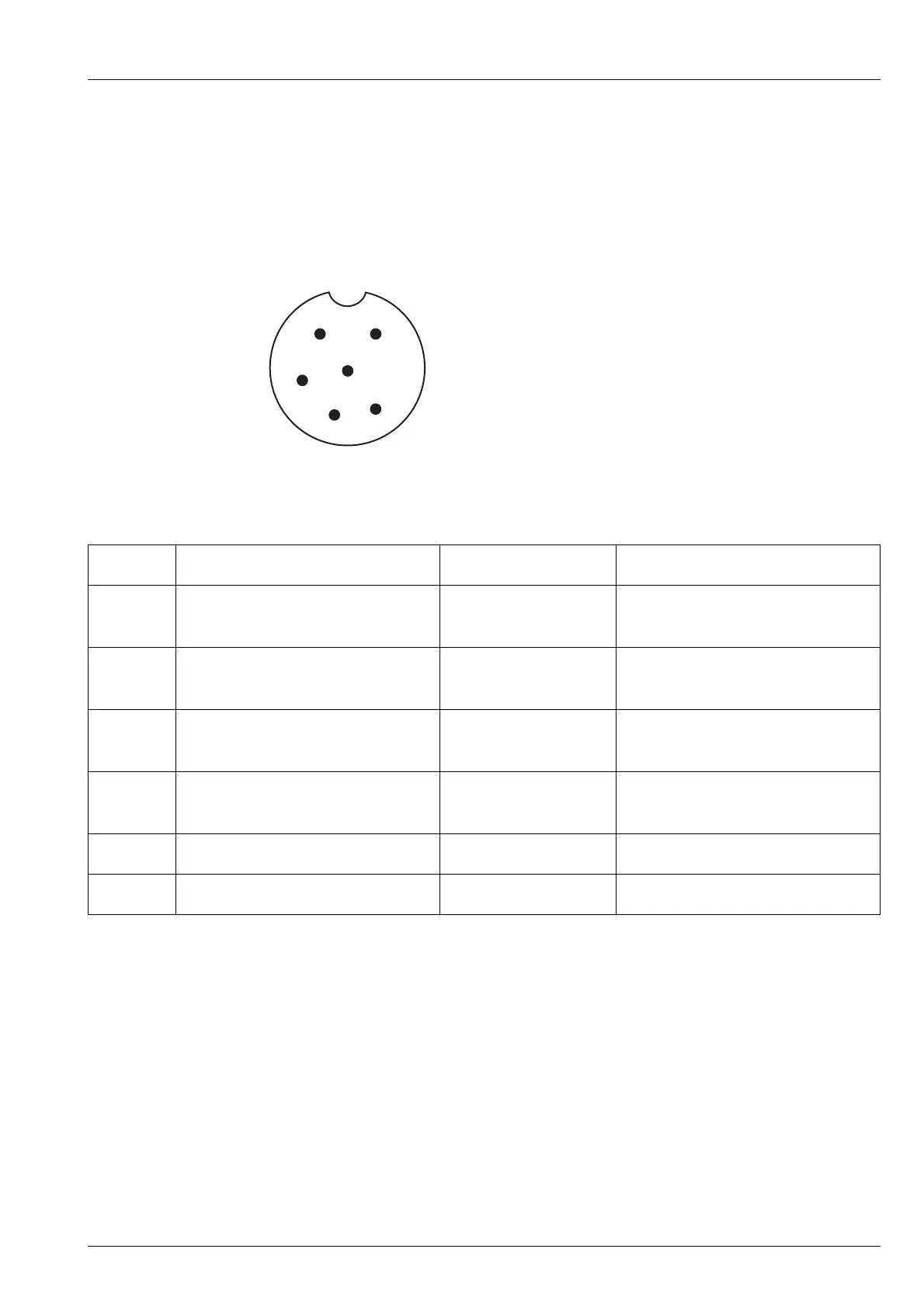

Figure 74: Front view of the antenna control connector

Table 16: Pinouts of the antenna control connector

Pin no. Function Input/output Signal level

1 Tune in/out

(Data)

Input/output 5 V logic, active low

2Scan

(Detect)

Output 5 V logic, active low

3 Tuned in

(Data)

Input 5 V logic

4 A rail protected

(2 A maximum)

Output +13.6 V nominal

5 External ALC input Input Control at 3.4 V

6 Ground 0 V
