OPERATING THE TRANSCEIVER
SETTING THE LOCATION OF THE DESK CONSOLE
44 ENVOY™ TRANSCEIVER REFERENCE MANUAL

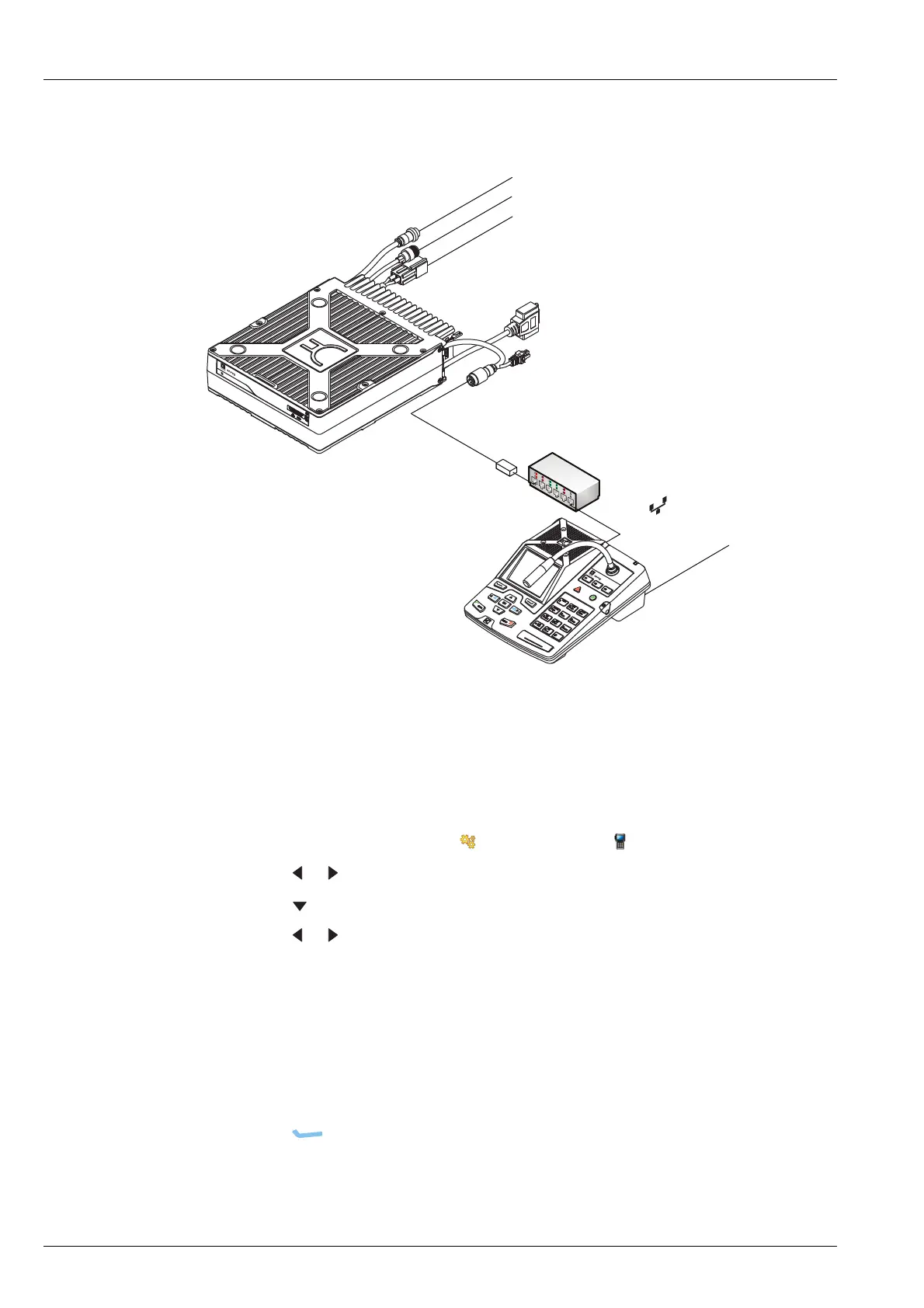

Figure 14: Connection between RFU and desk console using Ethernet
cables and optional switch
NOTE: The Console tab is available if a desk console is detected as a control
point.
To set the location of the desk console:
1 From the main menu, select (Settings), then (Control Point).
1 Press or to select the Console tab.
1 Press to move to the Console Location entry.
1 Press or to select the value that you want to use from the following:
• If the desk console is connected to the RFU using cable 08-07205-00x,
select Local.
• If the desk console is connected to the RFU using an Ethernet cable
(08-07215-001), select Remote.
CAUTION: You must set this value correctly to ensure that the desk console
switches off and on.
1 Press (Save) to save the information.
Related links:
Console Location on page 217
RF Unit
™
Type 2210
Serial No.
antenna control
antenna
battery
RF unit
10-way
connector
15-way
connector
6-way
connector
Desk Console
™
desk console
RJ45
connector
Ethernet switch/
router/network
(optional)
08-07215-001
(10-way to RJ45)
12 V DC source
(78-16019)
