DATA OPTIONS

2.4 KBIT/S DATA MODEM

306 ENVOY™ TRANSCEIVER REFERENCE MANUAL

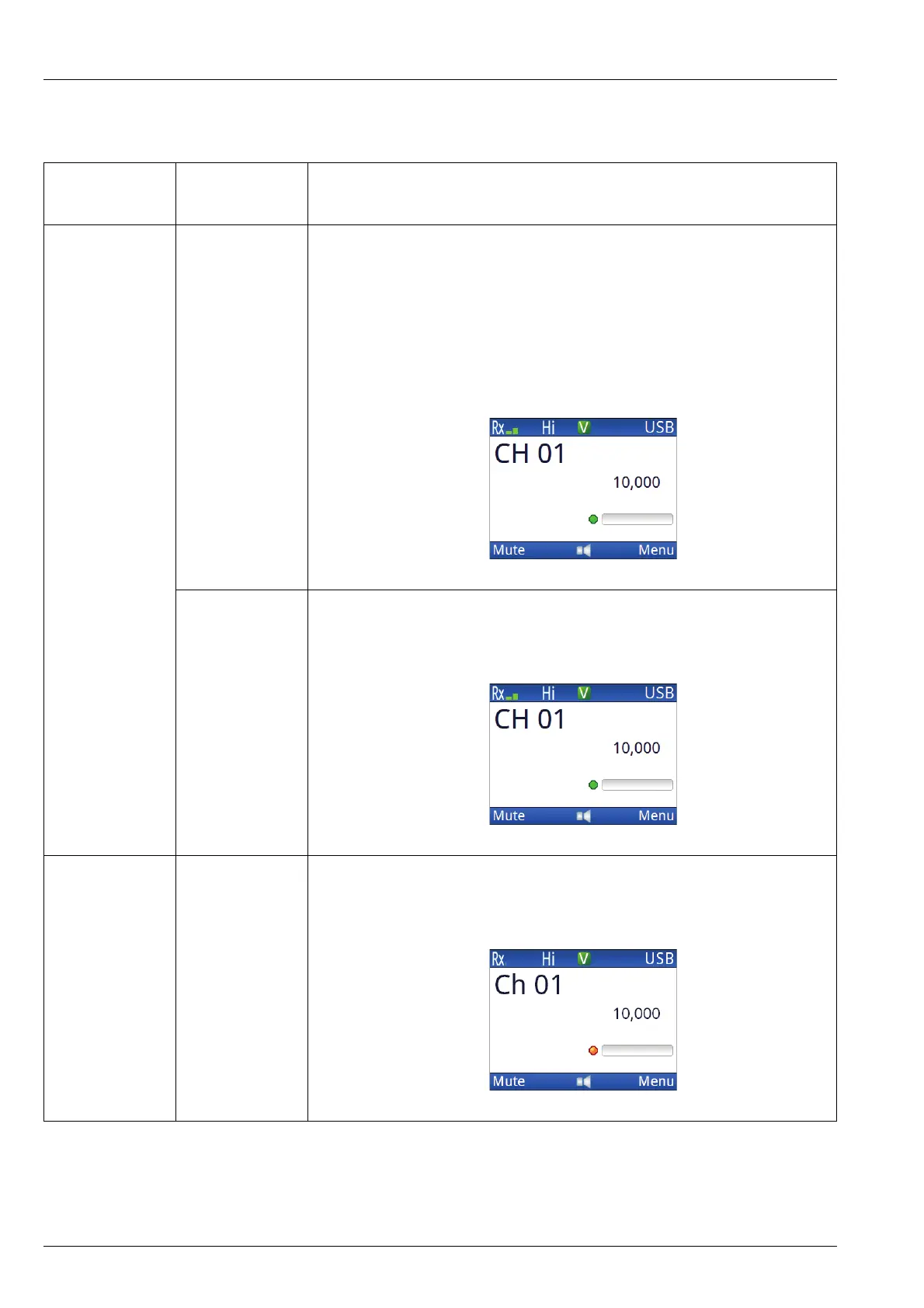

Table 13: Status of the 2.4 kbit/s Data Modem

Colour of

LED

State Description

Green Solid The transceiver has the modem enabled as a peripheral device on the

15-way port. Check that serial cable 08-06952-00x is connected

between the computer and the 15-way connector.

The modem is enabled and a computer is communicating with it via

VCOM over the USB–USB connection. The USB–USB connection

with VCOM is recommended for base stations only.

Flashing The station is establishing a link, or in a link, with another station.

This station is the receiver of the link.

Red Flashing The station is establishing a link, or in a link, with another station.

This station is the initiator of the link.
