OPERATING THE TRANSCEIVER

SETTING THE LOCATION OF THE DESK CONSOLE

ENVOY™ TRANSCEIVER REFERENCE MANUAL 43

Setting the location of the desk console

The desk console may be connected directly to the transceiver, or it may be connected

remotely.

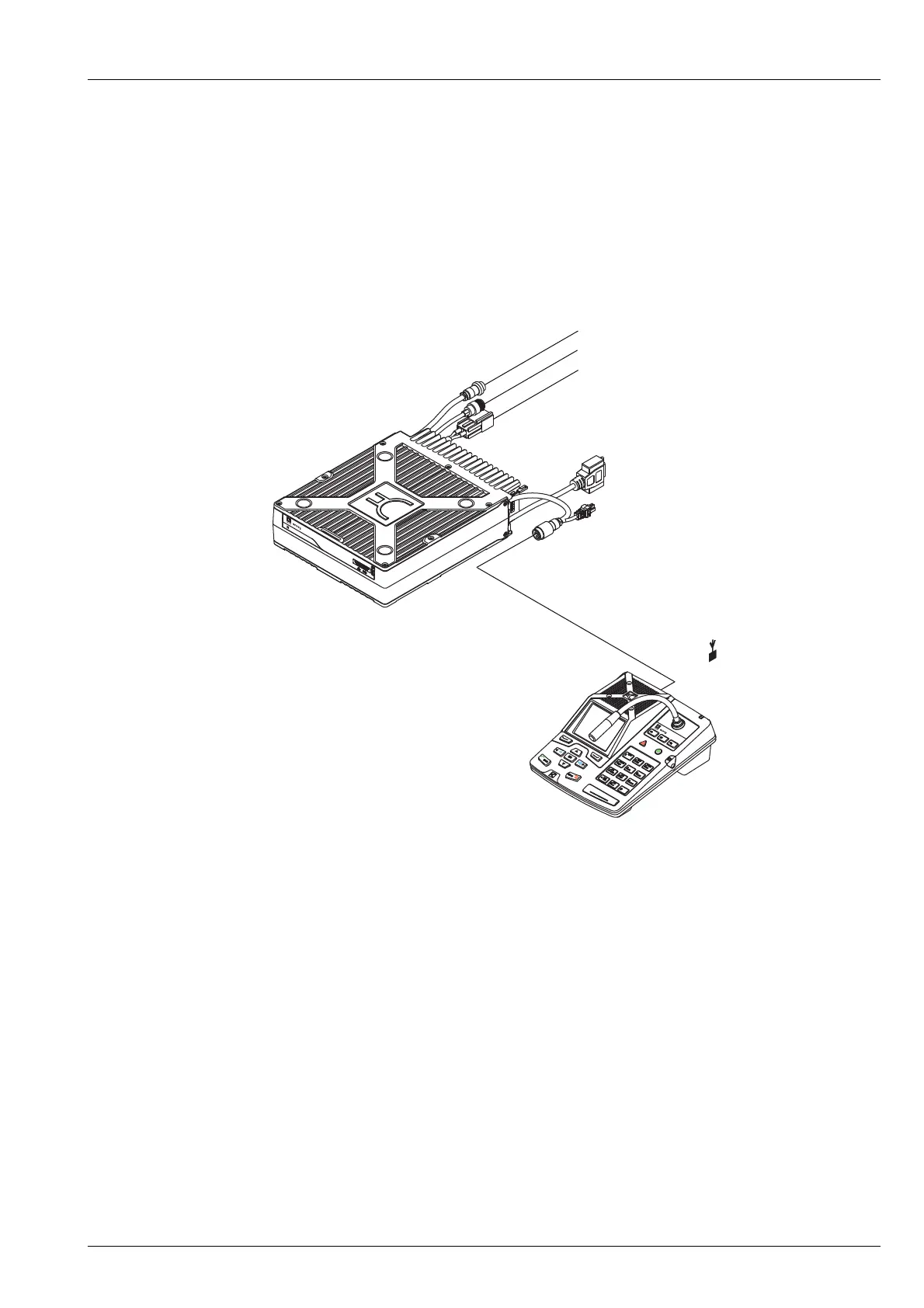

Figure 13: Connection between RFU and desk console using 10-way to

8-way cable
