CONNECTORS

CONNECTORS ON THE DESK CONSOLE

ENVOY™ TRANSCEIVER REFERENCE MANUAL 373

15-way GPIO connector

The 15-way connector is on the back panel of the desk console. It is used to interface

to a variety of third-party products.

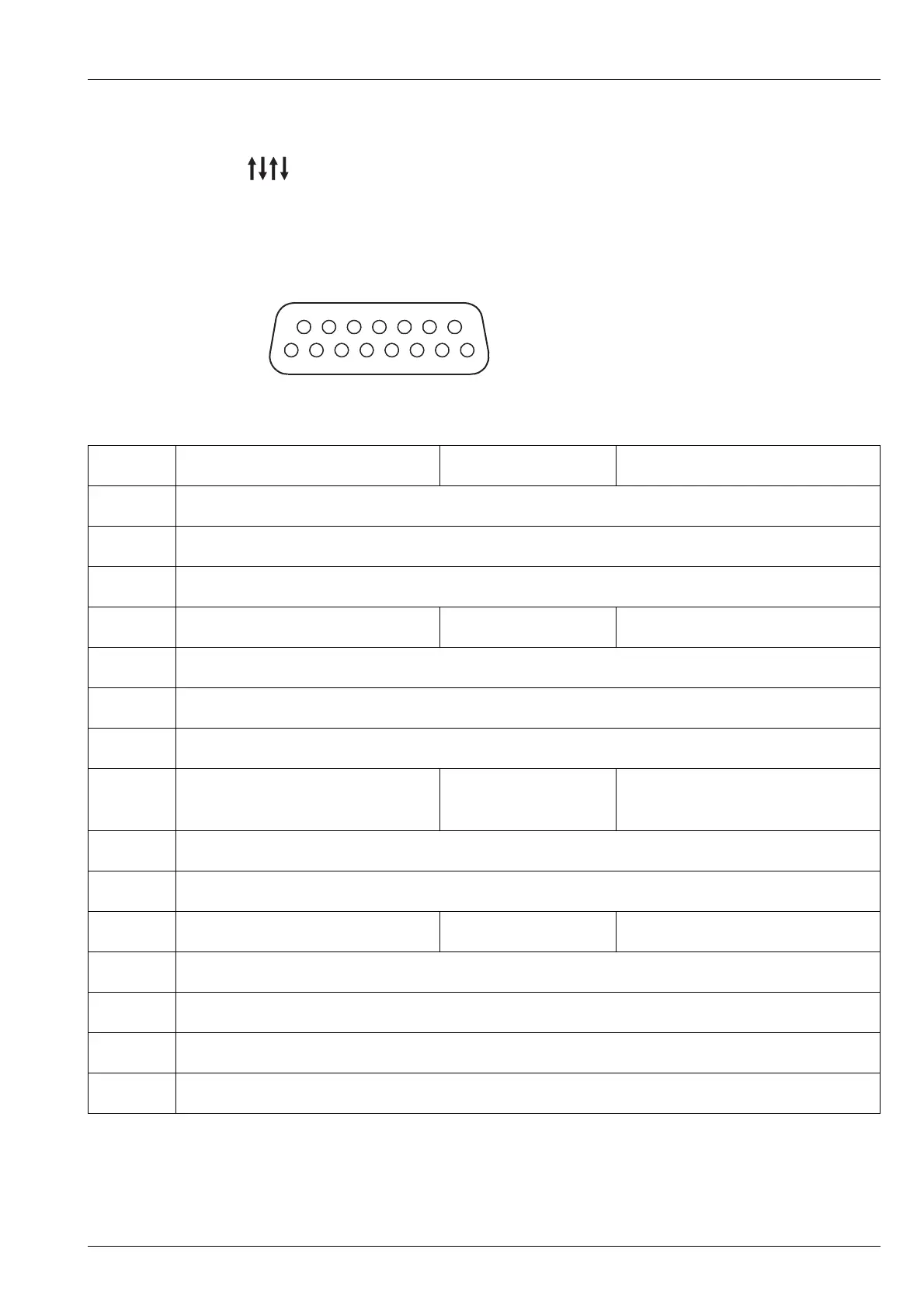

Figure 81: Front view of the 15-way GPIO connector

915

Pin no. Function Input/output Signal level

1 Not implemented

2 Not implemented

3 Not implemented

4 Ground 0 V

5 Not implemented

6 Not implemented

7 Not implemented

8 A rail protected

(2 A maximum)

Output +13.6 V nominal

9 Not implemented

10 Not implemented

11 Morse Input 5 V TTL logic active low

12 Not implemented

13 Not implemented

14 Not implemented

15 Not implemented
