Ethernet connector
The Ethernet connector is on the back panel of the desk console. It is a standard RJ45
socket.
Transceiver connector
The Transceiver connector is on the back panel of the desk console. It is an 8-way
PLT168-RF-R connector (female). It transfers control signals between the RFU and
the desk console, and provides power from the RFU to the desk console.

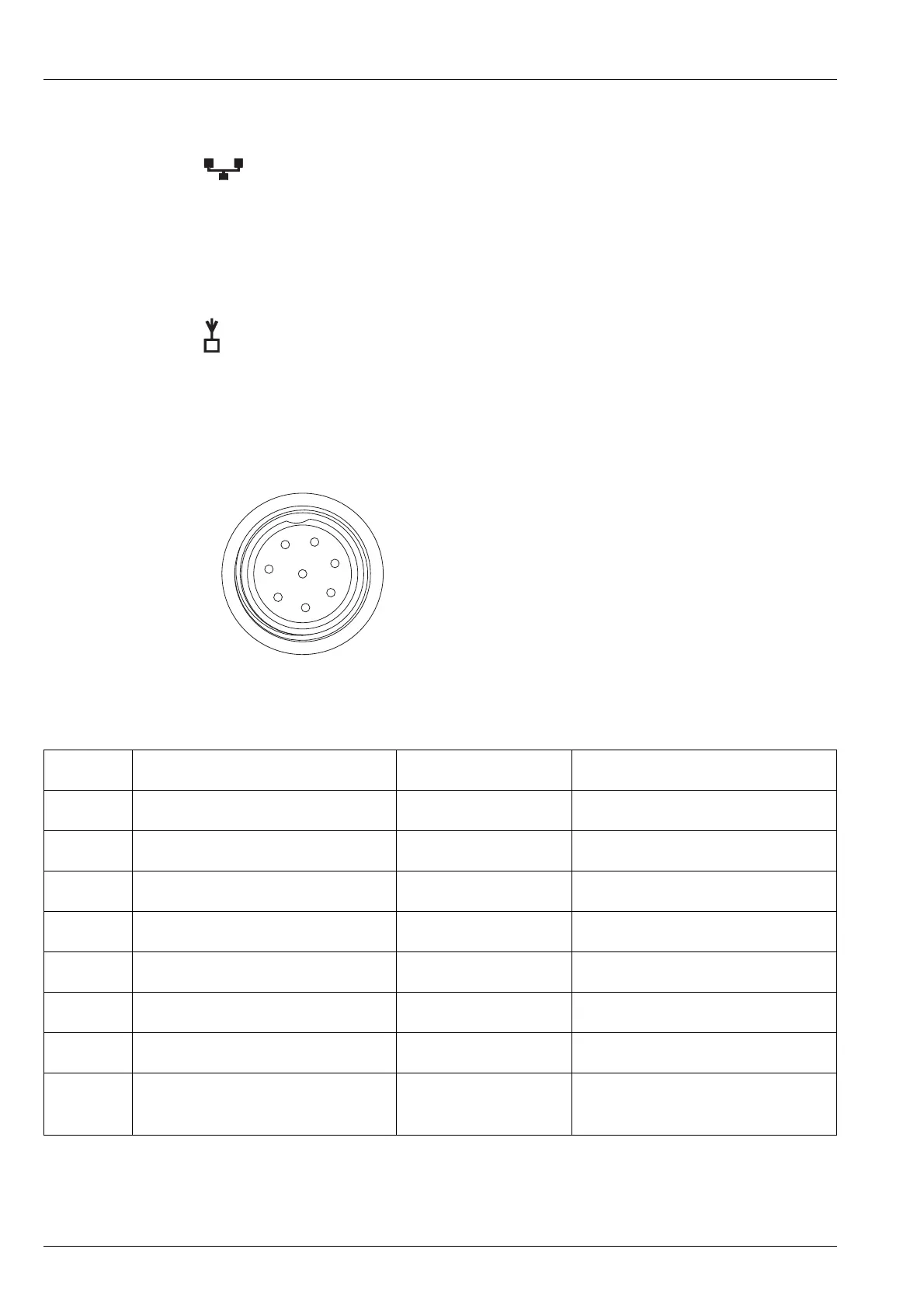

Figure 82: Front view of the Transceiver connector
1
2
3
4
5
6
7
8
Table 24: Pinouts of the Transceiver connector
Pin no. Function Input/output Signal level
1 Ground Output 0 V
2 Ethernet Rx– Input 10Base-T/100Base-Tx
3 Ethernet Rx+ Input 10Base-T/100Base-Tx
4 Shield
5 Ethernet Tx– Output 10Base-T/100Base-Tx
6 Ethernet Tx+ Output 10Base-T/100Base-Tx
7 Power supply for console Input 5 V/12 V nom (10.8 to 16 V)
8 A rail protected
(future use)
Output +12 V nom (10.8 to 16 V)
