INSTALLATION
FIXED STATIONS
ENVOY™ TRANSCEIVER REFERENCE MANUAL 407
Fixed stations
Overview of fixed stations
A fixed station typically consists of an RFU, a desk console, an AC transceiver supply
connected directly to the mains, an antenna, control and accessory devices, ancillary
equipment, and appropriate connecting cables. The transceiver is connected to the DC
output lead of the transceiver supply. The antenna is connected to the transceiver by
coaxial cable.
NOTE: A fixed station may also be powered via a battery system or solar
power system.

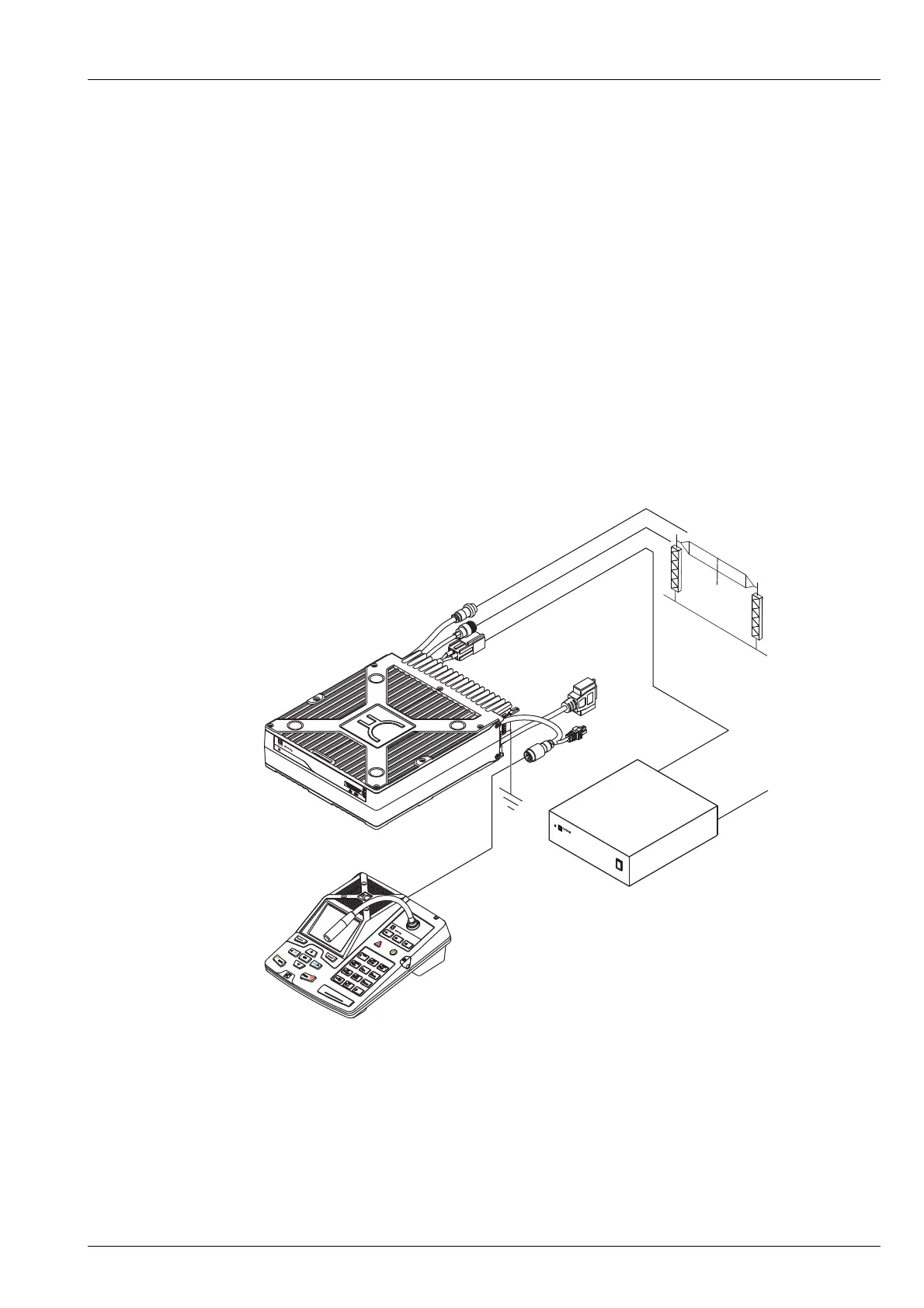

Figure 85: Typical fixed station
NOTE: A range of ancillary equipment may be connected to the Envoy™
Transceiver using the 6-way and 15-way connectors at the rear of the
RFU.
RF Unit
™
Type 2210
Serial No.
antenna control
antenna
battery
RFU
10-way
connector
15-way
connector
6-way
connector
power supply
AC mains
tuner
(optional)
broadband
antenna
Desk Console
™
desk console
08-07205-00x
08-03255
08-01503-00x
08-05627-00x
3020 Transceiver Supply
