OPERATING THE TRANSCEIVER

THE CHANNEL SCREEN

ENVOY™ TRANSCEIVER REFERENCE MANUAL 31

Selecting a theme

You can select one of the following themes for the display in the control point. You

can select one theme for use during the day, and another for use during the night.

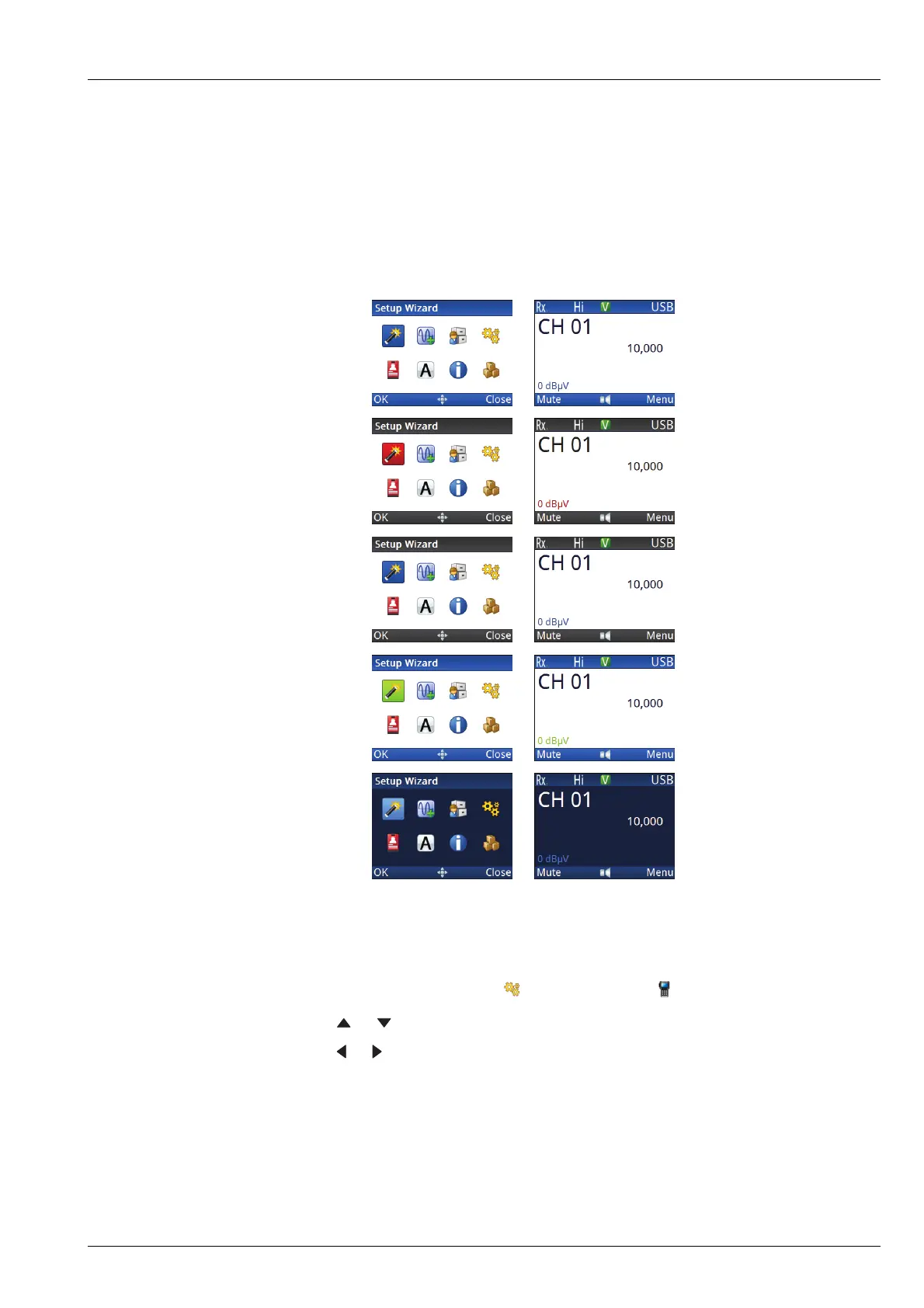

Figure 11: Available themes for the display in the control point

To select a theme:

1 From the main menu, select (Settings), then (Control Point).

1 Press or to scroll to the Theme or Night Theme entry.

1 Press or to select the theme that you want to use.

Menu screen Channel screen

Theme

Blue/Grey

(default

day time)

Grey/Red

Grey/Blue

Blue/Green

Dark Blue

(default

night time)
