OPERATING THE TRANSCEIVER
THE CHANNEL SCREEN
28 ENVOY™ TRANSCEIVER REFERENCE MANUAL
Selecting information to be shown in a status area
There are six status areas on the channel screen, scanning screen, and free-tune screen
that provide operational information directly to the user.

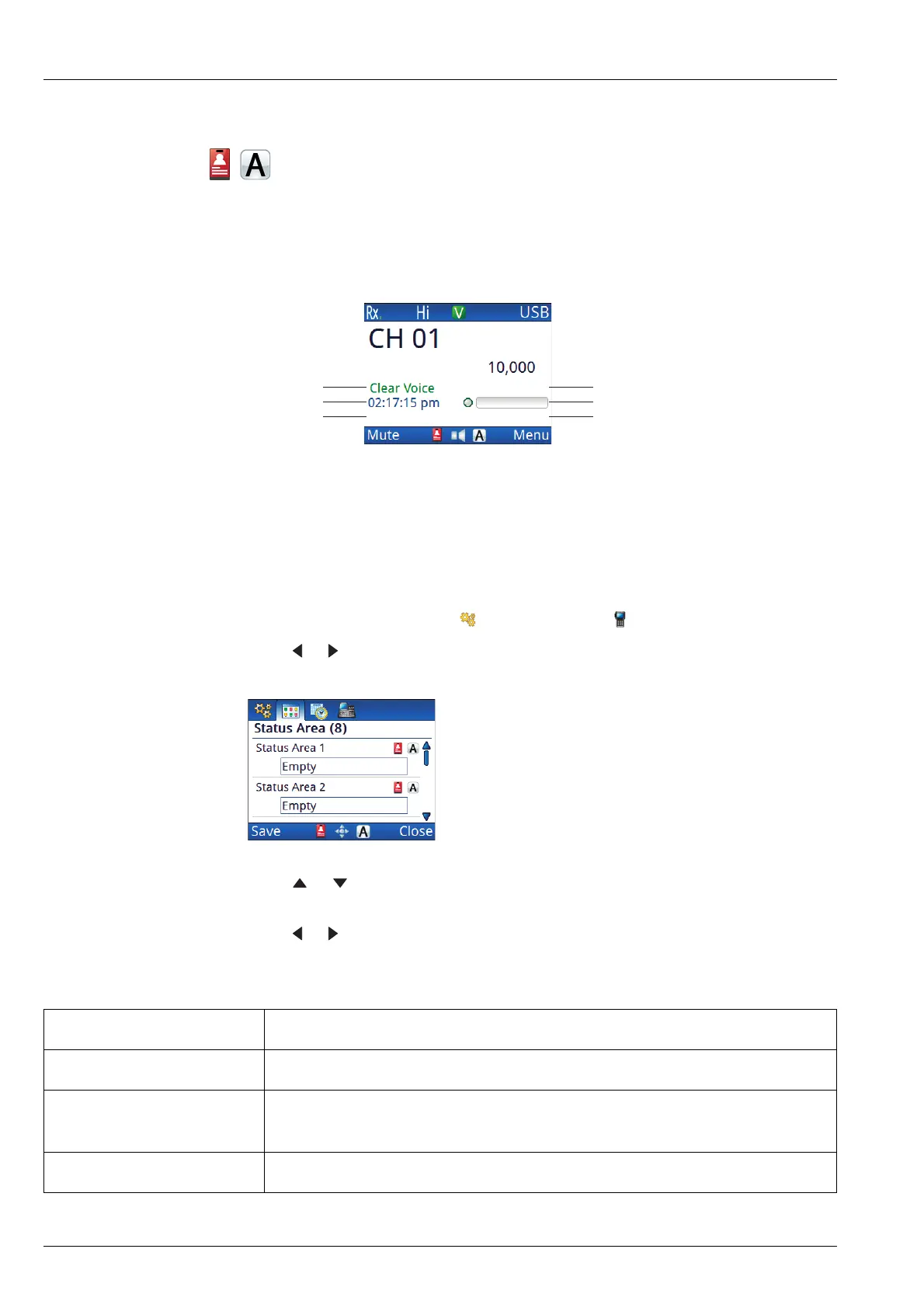

Figure 10: Status areas
NOTE: Information in status areas 1 and 2 is replaced by the secure status when
a voice or data encryptor is available.
To select information to be shown in a status area:
1 From the main menu, select (Settings), then (Control Point).
1 Press or to select the Status Area tab.
1 Press or to scroll to the status area in which you want to show status
information.
1 Press or to select the status information that you want to show.
status area 1 status area 2
status area 3
status area 5 status area 6
status area 4
Table 1: Information that may be shown in the status areas on the screen
Item Description
Empty Status area is blank
Transceiver type Read from the template in the transceiver, for example, Envoy X1 or
Envoy X2
User-defined text 1/2 Any text that you want to show on the screen
