KEYS AND MACROS
OVERVIEW OF THE KEYPAD AND MACROS
264 ENVOY™ TRANSCEIVER REFERENCE MANUAL
Overview of the keypad and macros
Each control point for the Envoy™ Transceiver has a set of keys that are used to set
up and operate the transceiver. The 2220 Handset and 2230 Desk Console have the
Power and Emergency keys, and a full set of navigation and alphanumeric keys. The
2230 Desk Console also has three dedicated function keys.
The 2221 Handset has the Power and Emergency keys, and the navigation keys. These
are used for operation in conjunction with extra menu options in the user interface.

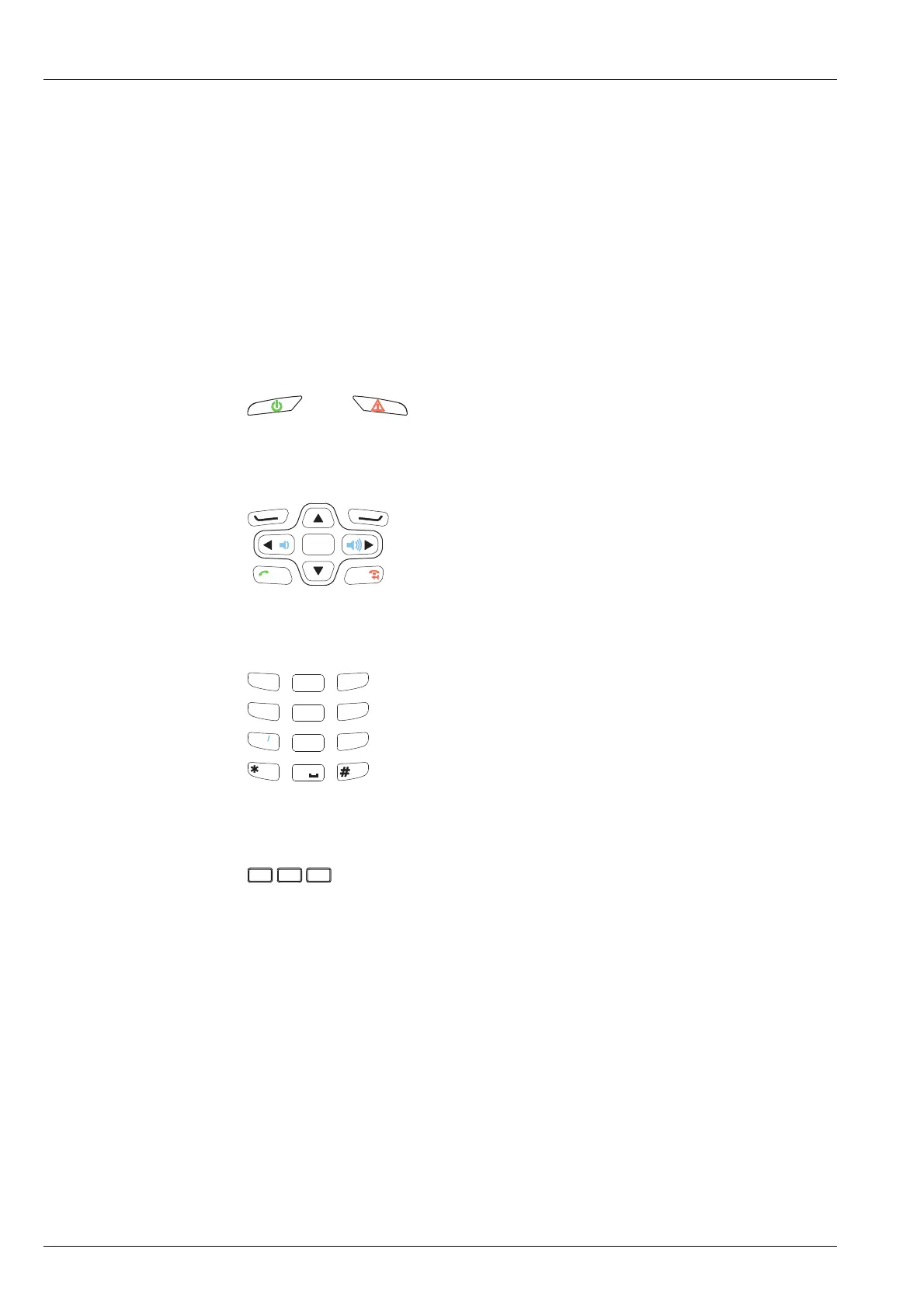

Figure 48: Power and Emergency keys
Figure 49: Navigation keys
Figure 50: Alphanumeric keys
Figure 51: Function keys (desk console only)
Each key may have more than one function. This function depends on your current
location in the user interface of the control point, the length of time that you press it,
and whether or not you press it in conjunction with another key. Some keys have a
specific function (macro) assigned to them. The Codan-defined macro name is written
on the key in blue text. This function can be reassigned to other keys, if required. A
key with a macro assigned to it is called a hot key. The dedicated function keys on the
desk console may be used at any location within the user interface.
You can press a key briefly to perform the direct function, or you can hold a key for
two seconds.
Related links:
Keypad on page 265
Macros on page 268
