OPERATING THE TRANSCEIVER
THE CHANNEL SCREEN
ENVOY™ TRANSCEIVER REFERENCE MANUAL 25
The channel screen
The channel screen shows the following information:
• the name of the currently selected channel
• the transmit and receive frequencies, if applicable
• the status areas that show specific information about the transceiver
• a bar graph that indicates the signal strength on receive (green) and the output
power on transmit (red)
• the transmit power level setting
• the call type icon (when calling) or the scan indicator (when scanning)
• the mute type indicator
• the mode
• the crosspatch indicator, if connected
• the clarifier indicator, if set

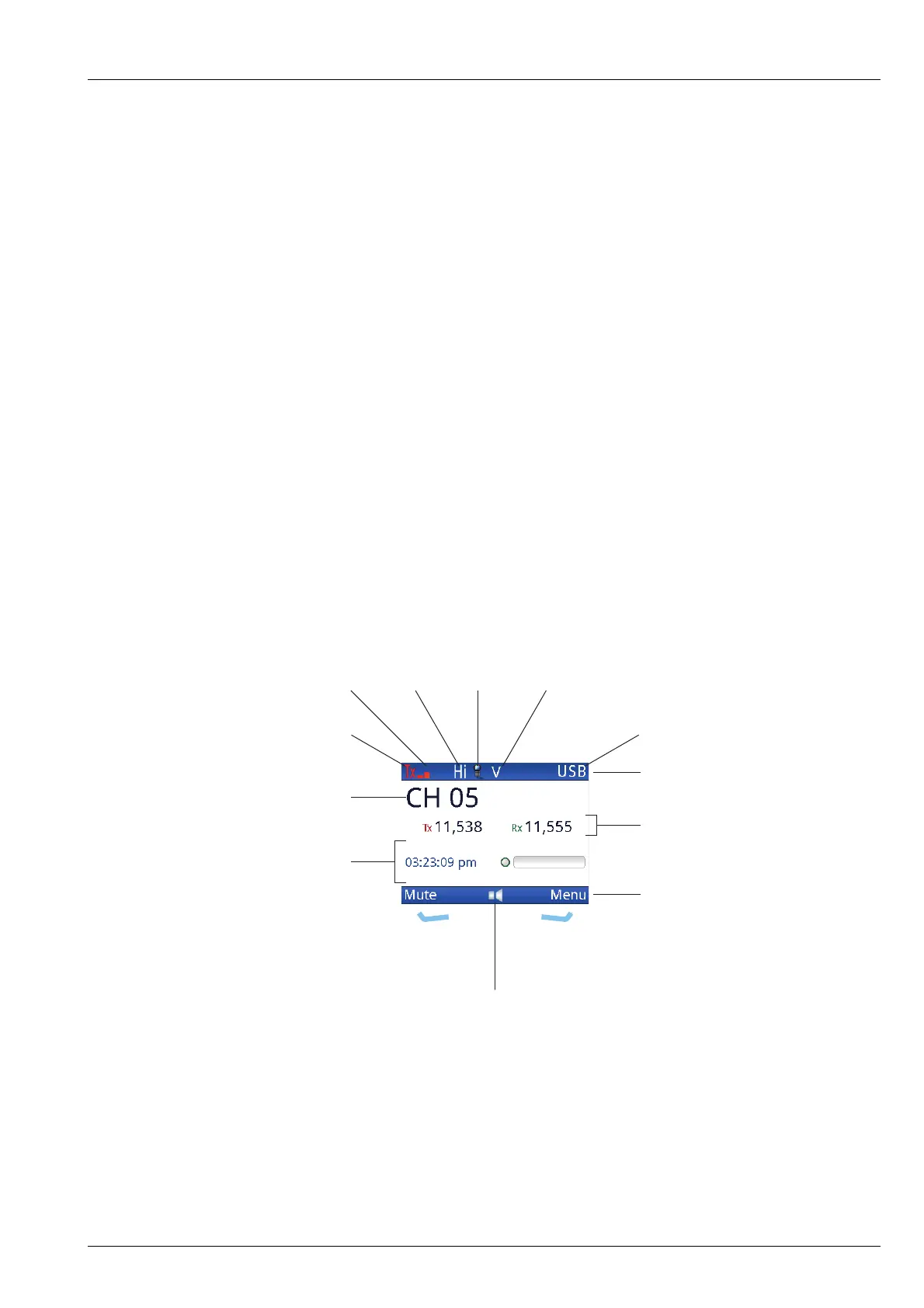

Figure 8: Channel screen
NOTE: If you cannot transmit on the channel, Inhibit is shown as the Tx
frequency.
If the transmit and receive frequencies are the same, the frequency is only shown on
the right side of the screen. The Rx/Tx indicator shows whether the transceiver is
receiving (green) or transmitting (red). The more bars that are shown, the higher the
signal strength.
channel name
Tx/Rx frequency
status areas
menu bar
title bar
mode
mute type
indicator
(highlighted
when mute is on)
call type
icon
Tx power
setting
signal
strength
indicator
Rx/Tx
indicator
left
software
key
right
software
key
volume
indicator
