INTRODUCTION
THE ENVOY™ TRANSCEIVER
ENVOY™ TRANSCEIVER REFERENCE MANUAL 7
The 2230 Desk Console
The 2230 Desk Console is a control point for the Envoy™ Transceiver. The user
interface provides an icon-based menu structure for easy setup and operation of the
transceiver. The desk console is standard for a fixed station.

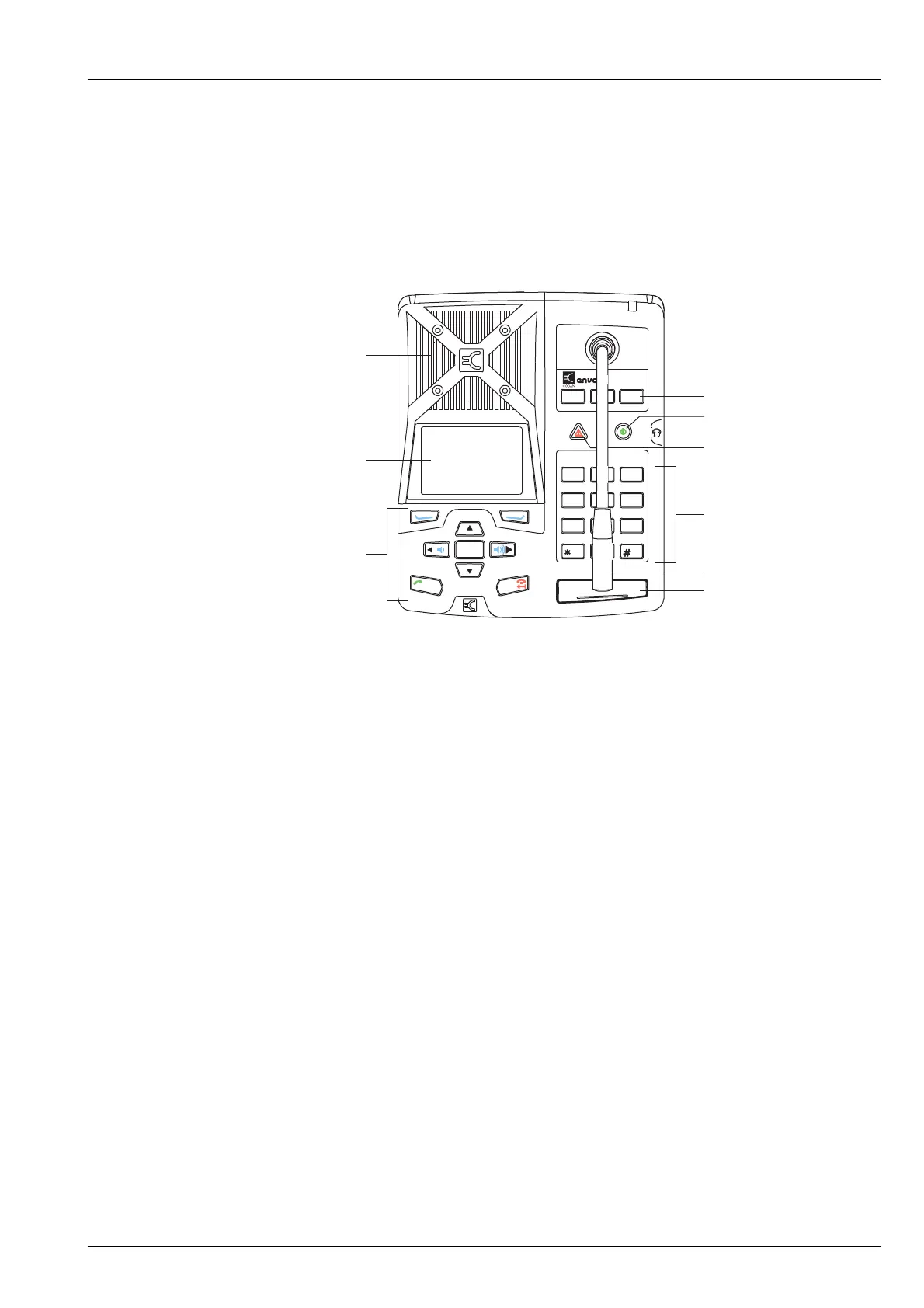

Figure 4: 2230 Desk Console
The 2230 Desk Console has an optional boom microphone, a built-in speaker, a PTT
button, a screen, navigation keys, function keys, and numeric keys. The desk console
also supports the use of headphones, a foot-switched PTT device, and a separate hand
microphone with PTT. The keypad enables you to control and configure the
transceiver system via the user interface.
The 2230 Desk Console is shipped from the factory with standard hot keys
programmed to the numeric keys. The function that each standard hot key performs is
written on the numeric key in blue text. New user-defined functions may be assigned
to most of the keys.
Related links:
Navigating the menu structure on page 89
Keypad on page 265
FUNC
ABC
2
Desk Console
F1
F2 F3
MODE
DEF
31
TUNE
FREE Rx
GHI
4
MNO
6
WXYZ
9
V/S
PQRS
7
EASI
TAL K
VIEW
0
SEC
TUV
8
JKL
5
SCAN
CALL
OK
speaker
boom microphone
function keys
Power key
Emergency key
numeric keys
PTT
screen
navigation and
software keys
