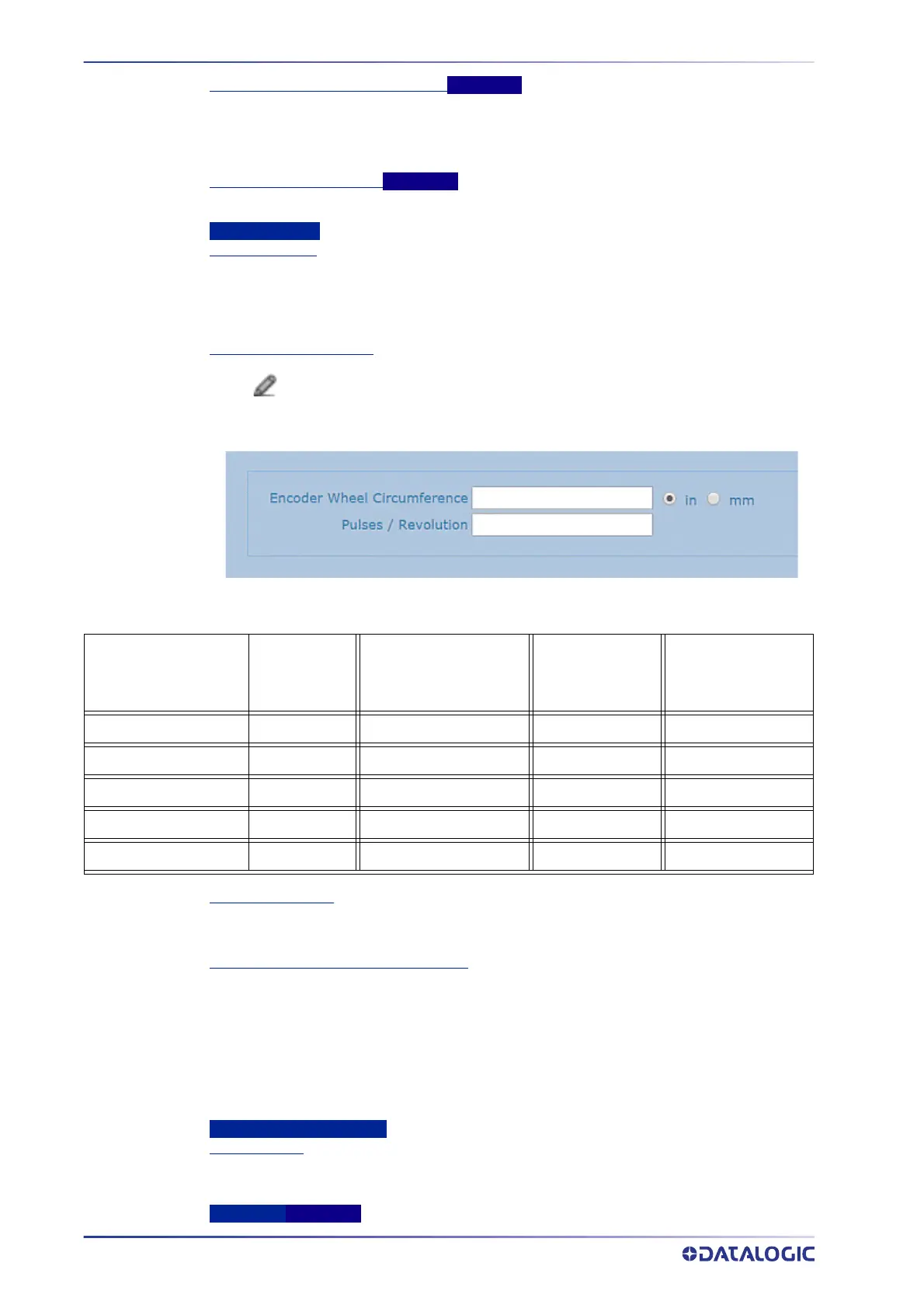

106 AV7000 LINEAR CAMERA
PackTrack Offset (direction of travel) AV500 Only
Enter a value used when a value must be added for proper PackTracking. The PackTrack offset
is used to fine tune the PackTrack calibration in the Y-direction (direction of travel). If after the
static calibration is complete, the bar code is still not placed on the package correctly, the
PackTrack offset parameter allows for a slight adjustment on the Y plane.
Enable Mass Flow Support
AV500 Only
Click the check-box to enable Mass Flow Detection features.
Encoder Settings
Physical Encoder
Select Disable or Enable from the drop-down list:
•
Disable: External encoder is disabled, and internal encoder is active
•
Enable: A physical encoder is connected to the Encoder input and is enabled
Encoder Step (mm/pulse)
Click to activate the Encoder Step input form. Enter the Encoder Wheel
Circumference in the field provided and select the in or mm option. Enter the Pulses /
Revolution in the field provided (See the table below for values). Click Submit to save the
values, or click Cancel to return to the Operating Mode window.
Encoder Step Settings Table
Encoder Wheel
Circumference
PPR
(Pulses Per
Revol
ution)
Encoder Step
(mm)
Encoder Step
(inch)
Encoder Model
304.8 mm [12 in] 192 1.5875 16 1000019875
304.8 mm [12 in] 240 1.27 20 1000019875
300 mm [11.81 in] 192 1.5625 16 OEK-2 93ACC1770
300 mm [11.81 in] 240 1.25 20 OEK-2 93ACC1770
304.8 mm [12 in] 2400 0.127 200 OEK-3 93ACC0104
Encoder Resolution
Displays the encoder/tachometer resolution in pulses per inch (PPI) based on the Encoder Step
calculation. This field cannot be edited.
Conveyor Speed (max/constant) (m/sec)
When physical encoder is enabled, enter the maximum belt speed using the formula below.
Formula: Max conveyor speed x 1.05
This formula is for an external tach. If the unit is set for internal the exact speed of the
conveyor must be entered.
When disabled there is no physical tach connected to the camera. When the unit is set for
internal tack, the exact speed of the conveyor must be enabled. The Max Conveyor Speed
option uses an internal clock that sets the tach to match the conveyor speed.
Advanced Encoder Settings
Direct Encoder
Select Disable or Enable from the drop-down list. Direct encoder is a high-resolution
encoder/tachometer (200 tachs per inch/.012700 mm/pulse) used in start/stop applications.
Frame Rate AV500 Only
