OPERATING MODE
PRODUCT REFERENCE GUIDE 107

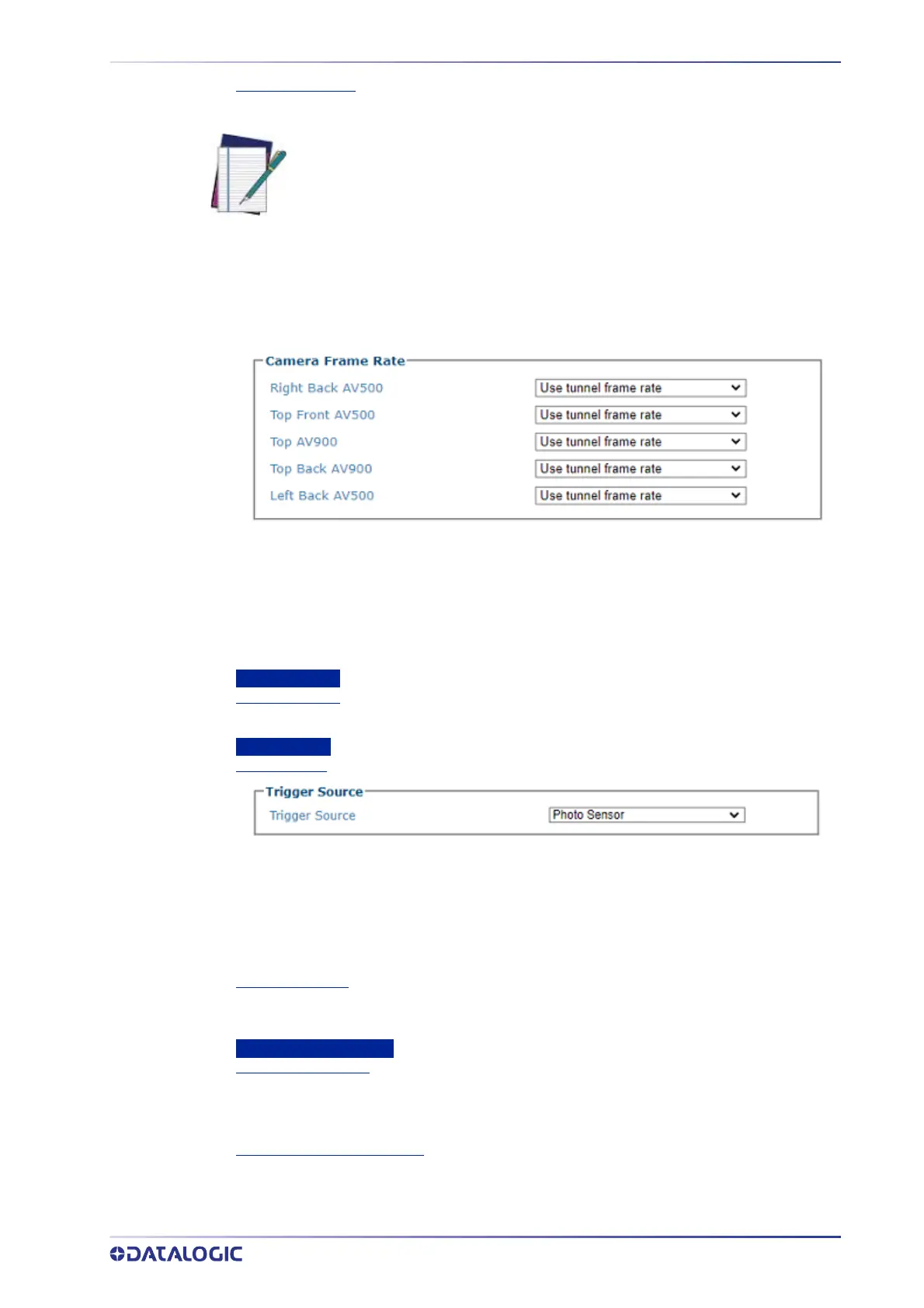

Tunnel Frame Rate
Select an appropriate Frame Rate from the drop-down list.
• 8 frames per second
• 16 frames per second
• 24 frames per second
• 32 frames per second
If there are multiple AV500/900 cameras in a system, you can specify a tunnel frame
rate for each specific camera. Use the options below to specify.
Select from the following:
• Use tunnel frame rate
• 8 frames per second
• 16 frames per second
• 24 frames per second
• 32 frames per second
Conveyor Width
Conveyor Width
Enter the width of the conveyor.
Trigger Source
Trigger Source
Select from the drop-down list.
•
Position Sensor: triggers when selected position sensor senses a package.
•
Photo Sensor: triggers when a photoelectric sensor is blocked.
•T
rigger Message: triggers when a trigger message is received from an external device.
•
Ethernet/IP: triggers when a trigger message is received from a PLC.
Trigger Controller
Select which camera in your system is controlling the trigger message. This option is only
available when the Trigger Source is set to Trigger Message.
Position Sensor Settings
Position Sensor Type
Select No Position Sensor, Light Curtain, Dimensioner, S85, or S85 with DL Light
Curtain from the drop-down list, depending on the specific position sensor used by the
system. The following parameters will vary depending upon the Position Sensor selected.
Position Sensor Height Offset
Enter the distance between the position sensor’s zero height reference point and the
conveyor’s surface. This should be set to zero (0) for other, non-light curtain position sensors.
NOTE: This option is adjusted to best fit various applications. Contact Data-
logic support to determine the correct setting.
