Position Sensor Transmit Delay
Enter the distance from the position sensor to the positions sensor’s transmit point. The
Position Sensor Transmit Delay is a delay in the time that the position sensor sends the
focusing information to the camera. This delay time allows for the position sensor to provide
stable focusing data to the camera. The Position Sensor Transmit Delay option allows the
camera to receive the focusing data at the correct time.

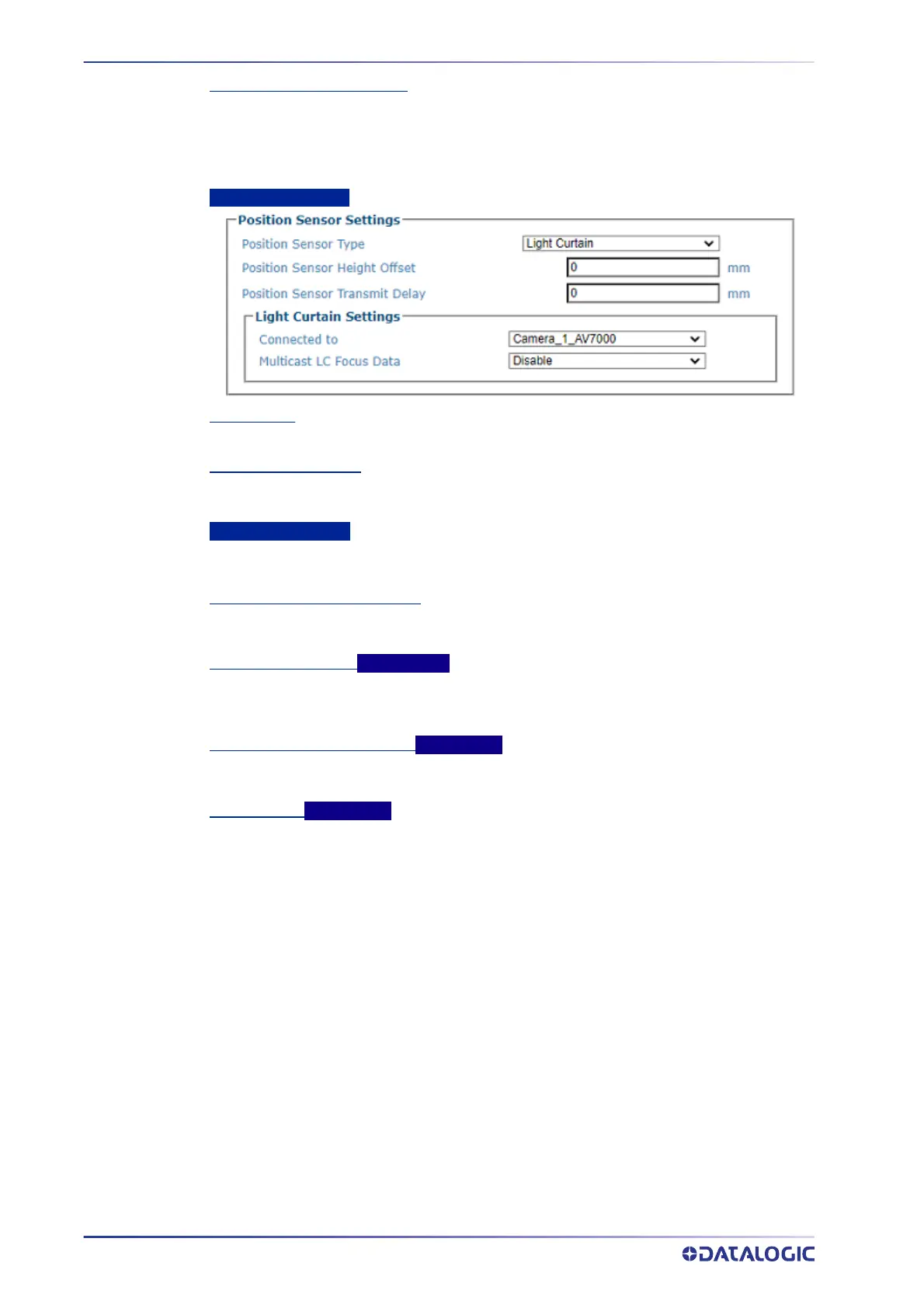

Light Curtain Settings
Connected to
Select a camera in the system to which the light curtain is connected.
Multicast LC Focus Data
Select Disable or Enable. Selecting Enable allows the sending of Light Curtain focus data to ALL
the cameras in the array.
Dimensioner Settings
When
Dimensioner is selected as the Position Sensor Type, additional Trigger Source
parameters are revealed.
These are AV7000 specific.
Trigger Source to Position Sensor
Enter the distance from the trigger (PLC message or device) to the Position Sensor (in this case
the dimensioner).
Crossbelt Sorter Mode
AV7000 ONLY,
Click the drop-down to select
Enabled or Disabled. This option enables features in Operating
Mode and Device Imaging that can improve performance when your system is set up over a
Crossbelt Sorter.
Enhanced Trigger Extends Mode
AV7000 ONLY
Click the drop-down to enable or disable
Enhanced Trigger Extends Mode. These options
will become available in device imaging.
Maximum Gap
AV7000 ONLY
Enter a value for the greatest distance between crossbelt trays (in cm).
