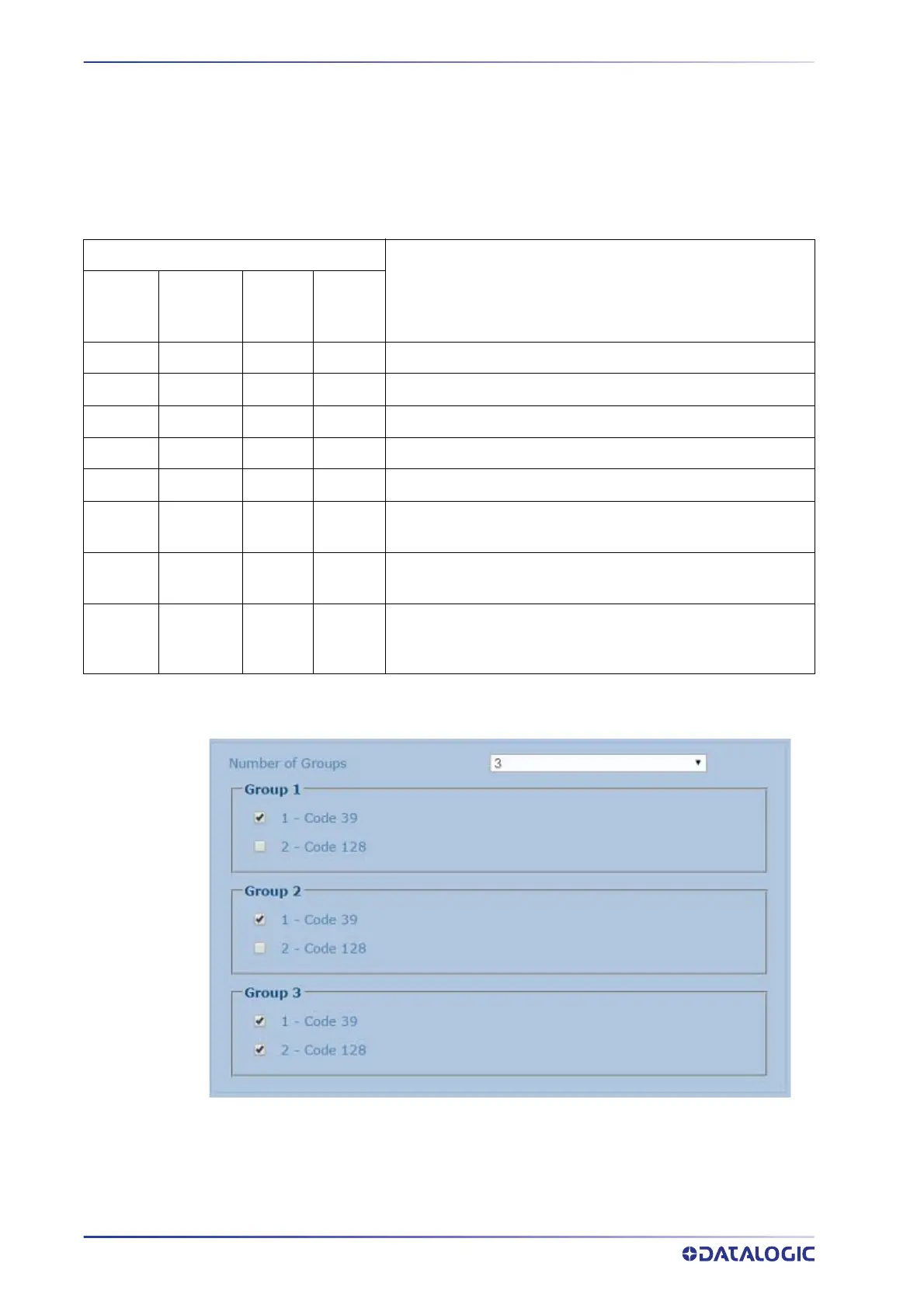

Example 3
Code label setting#1 = Code 39
Code label setting#2 = Code 128
Logical Combination Rule = 1&1&1^2
Defines three different groups. The first two groups expect a Code 39 label while
the
third one expects a Code 39 label OR a Code 128 label.
Decoded Code Symbology
Output Message
First
Label #1
Second
Label #1
Third
Label
#1
Label
#2
--- --- --- --- <Header><Global No Read Message><Terminator>
X --- --- --- <Header><Global No Read Message><Terminator>
--- X --- --- <Header><Global No Read Message><Terminator>
--- --- X --- <Header><Global No Read Message><Terminator>
--- --- --- X <Header><Global No Read Message><Terminator>
X X X ---
<Header><Code 39 data><DPS>< Code 39 data><DPS>< Code
39
data><Terminator>
X X --- X
<Header><Code 39 data><DPS><Code 39 data><DPS><Code
12
8><Terminator>
X X X X
<Header><Code 39 AV500/AV900 data><DPS><Code 39
A
V500/AV900 data><DPS><First decoded code/Multiple Read
Message string
><Terminator>
