186 AV7000 LINEAR CAMERA
Distance to Trigger Line State
Select Upstream or Downstream. This parameter specifies if the distance from the physical
Trigger Line is required Upstream or Downstream (i.e. Trigger Source) to the expected receiving
point of the Protocol Index, measured in mm or inches. It is used together with the Minimum
Distance Between Two Consecutive Objects (below) parameter to assign the Protocol Index
information to the correct package. This option allows the camera to recognize a protocol
index message even if it occurs upstream such as a message from a scale.

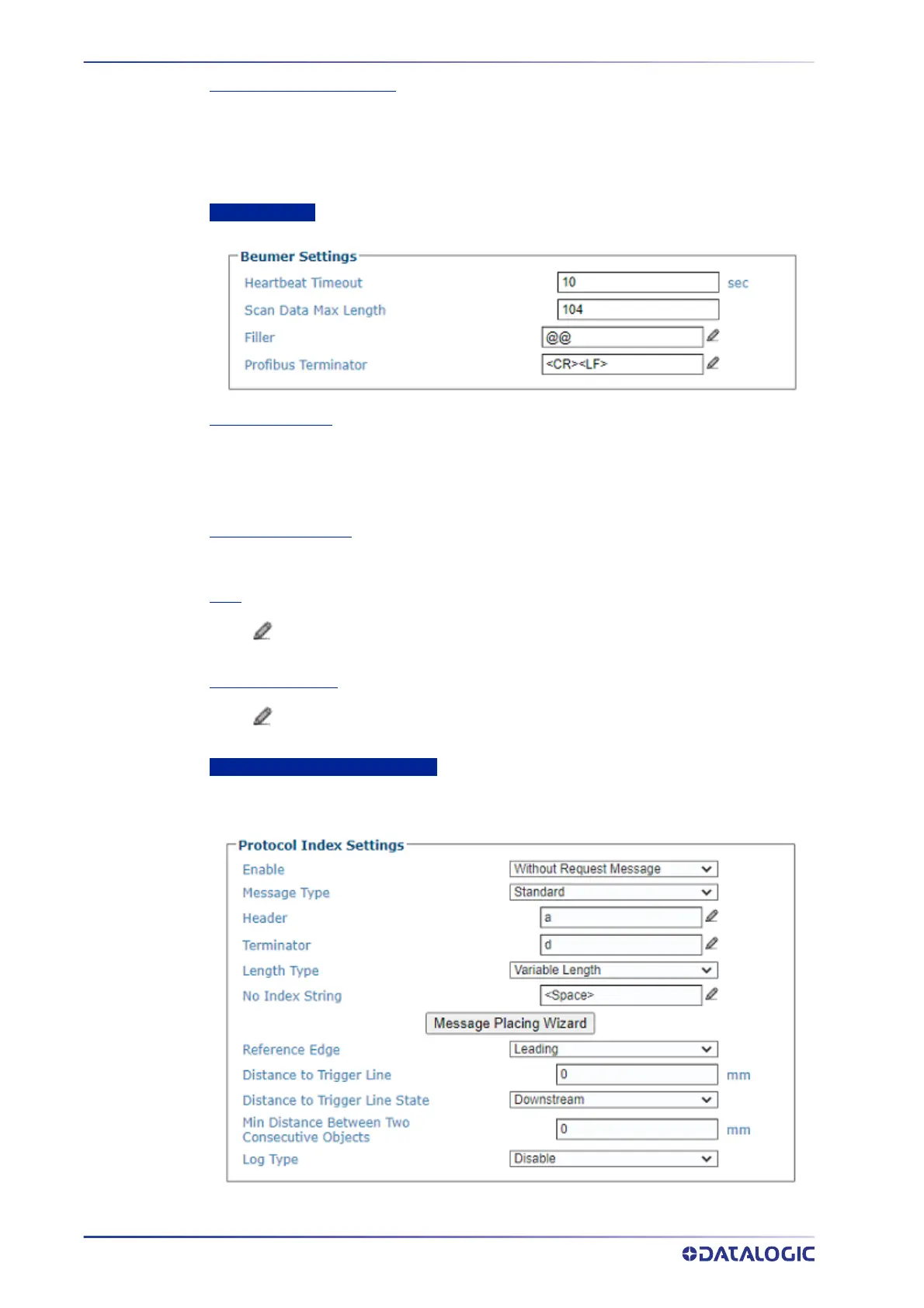

Beumer Settings
Heartbeat Timeout
Enter a time value in seconds to define the amount of time between two heartbeat message
transmissions. The timeout timer determines the period from one message to the next. In the
Conditional setting the timer is reset when either a host message or a heartbeat is sent. In an
unconditional condition the heartbeat message timer is only associated with the heartbeat
message, not the host message.
Scan Data Max Length
Enter a maximum length value in the field provided. This field defines the number of characters
that will be expected by the Beumer host PLC.
Filler
Click to “Enter Text with the Text Entry Tool” on page 92 and create a filler
character(s).
Profibus Terminator
Click to “Enter Text with the Text Entry Tool” on page 92 and create a filler
character(s) to terminate a Profibus message.
Custom 1-5 Protocol Index Settings
See
“Protocol Index Example” on page 197
