MANUAL MOUNTING CALIBRATION
PRODUCT REFERENCE GUIDE
245

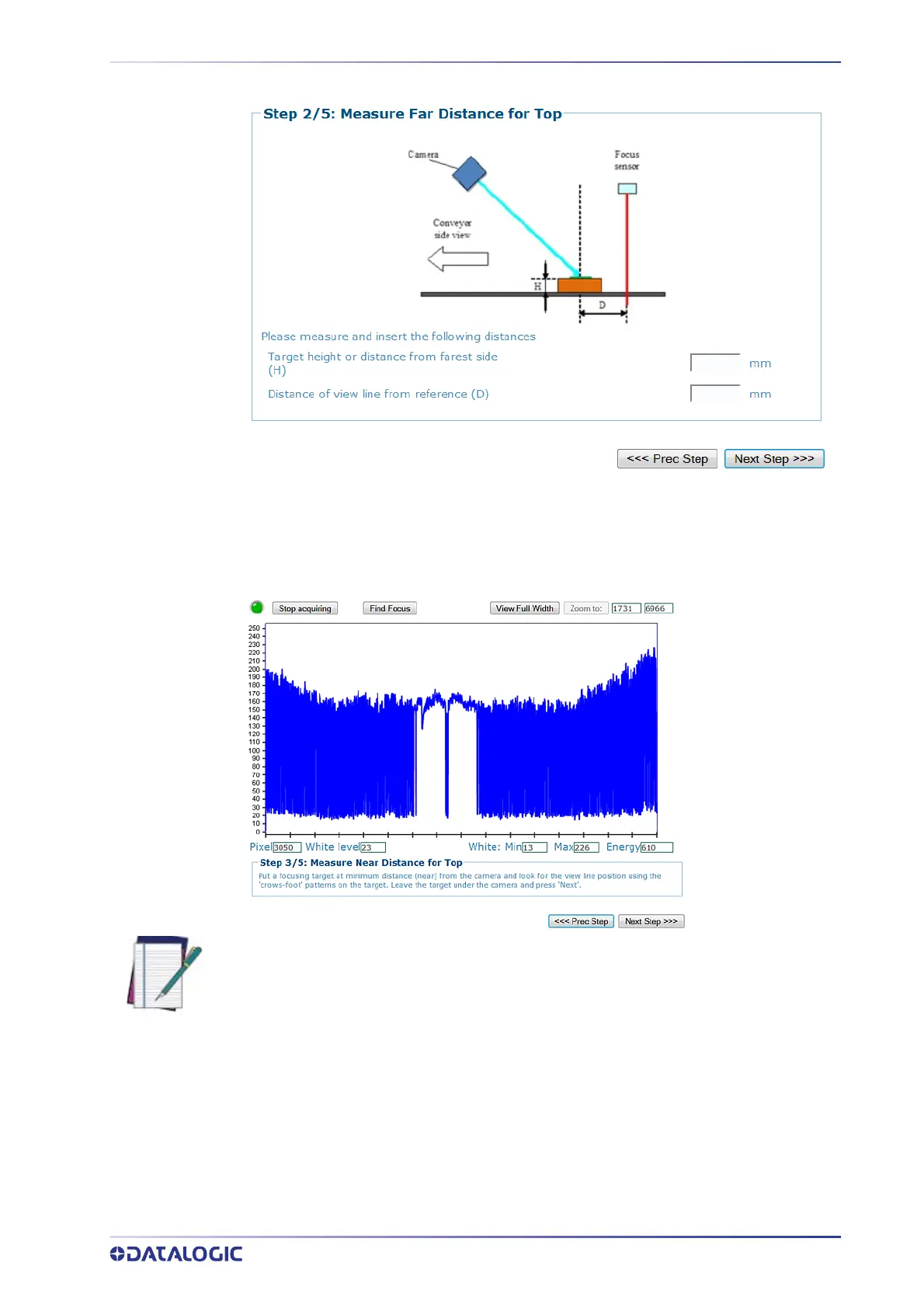

11. Measure the distance from the center of the CH-3 Autofocus Test Chart (center of
X) to the focus source (DM3610, RangeFinder, or Light Curtain). Enter the distance
in the Distance of view line from reference (D).
12. Click Next Step >>>. The Step 3/5 Mounting Calibration Window opens.
13. Place the CH-3 Autofocus Test Chart at the near distance. Position the target so
the center X has only one leg (center of X) represented.
14. Zoom into the target area as described in the steps above.
NOTE: If the image does not come into focus as shown above, click Find Focus. This should
find and focus on the target.
