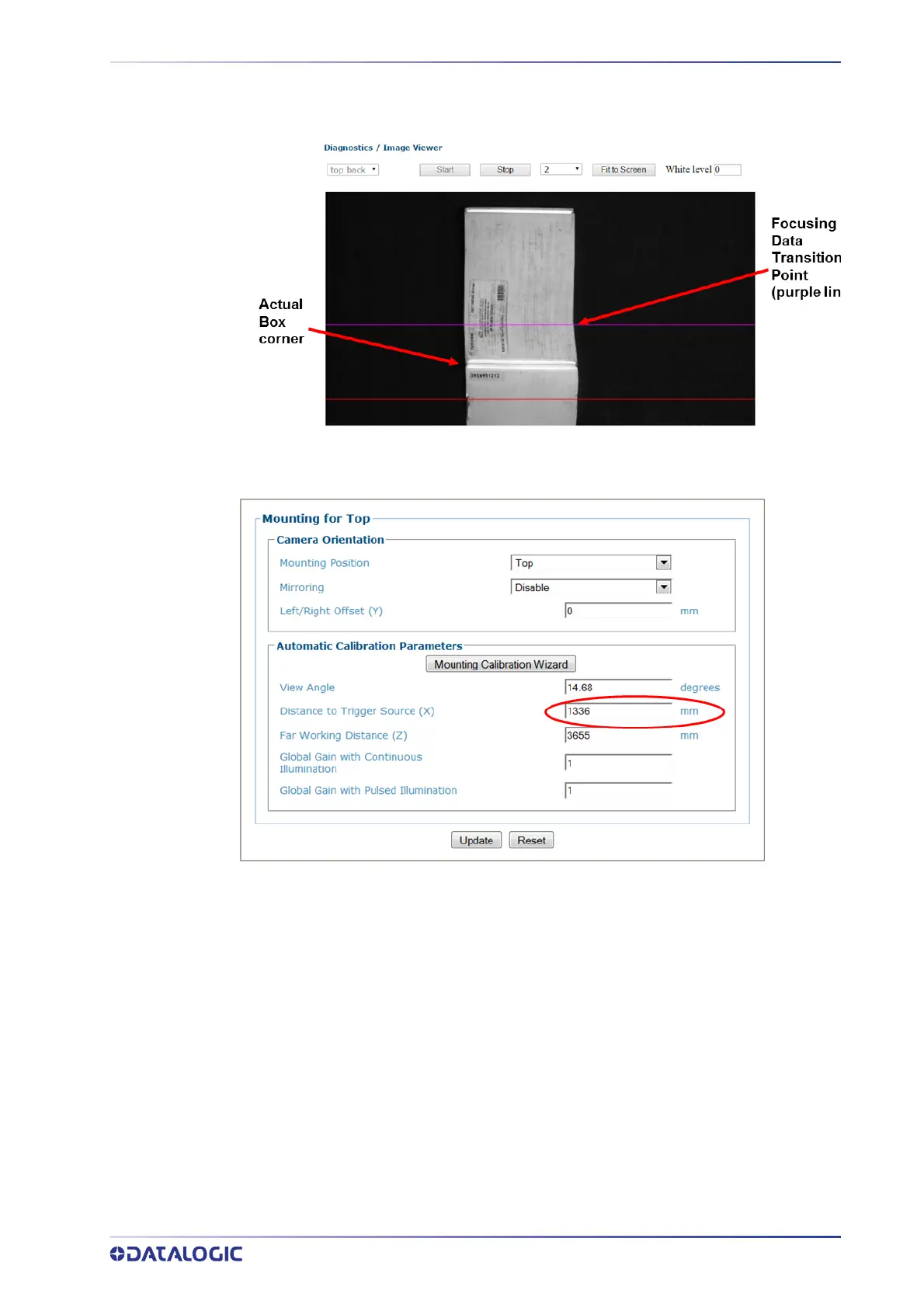

6. If the Focusing Data Transition Point (purple line) does not align with the leading
corner of the box, the Distance to Trigger Source (x) must be modified to align the
purple Focusing Data Transition Point line with the corner of the box.
7. In the menu tree, navigate to Modify Settings | Device Setting | Camera n (unit
being calibrated) | Mounting. The Mounting window opens.
8. Incrementally modify Distance to Trigger Source (X) to move the Focusing Data
Transition Point (purple line) to the actual corner of the box.
To do this, r
e-run the SMALL box and adjust the Distance to Trigger Source (X) until the
Focusing Data Transition Point aligns with the leading corner of the box
