SETUP AND CALIBRATION
346 AV7000 LINEAR CAMERA

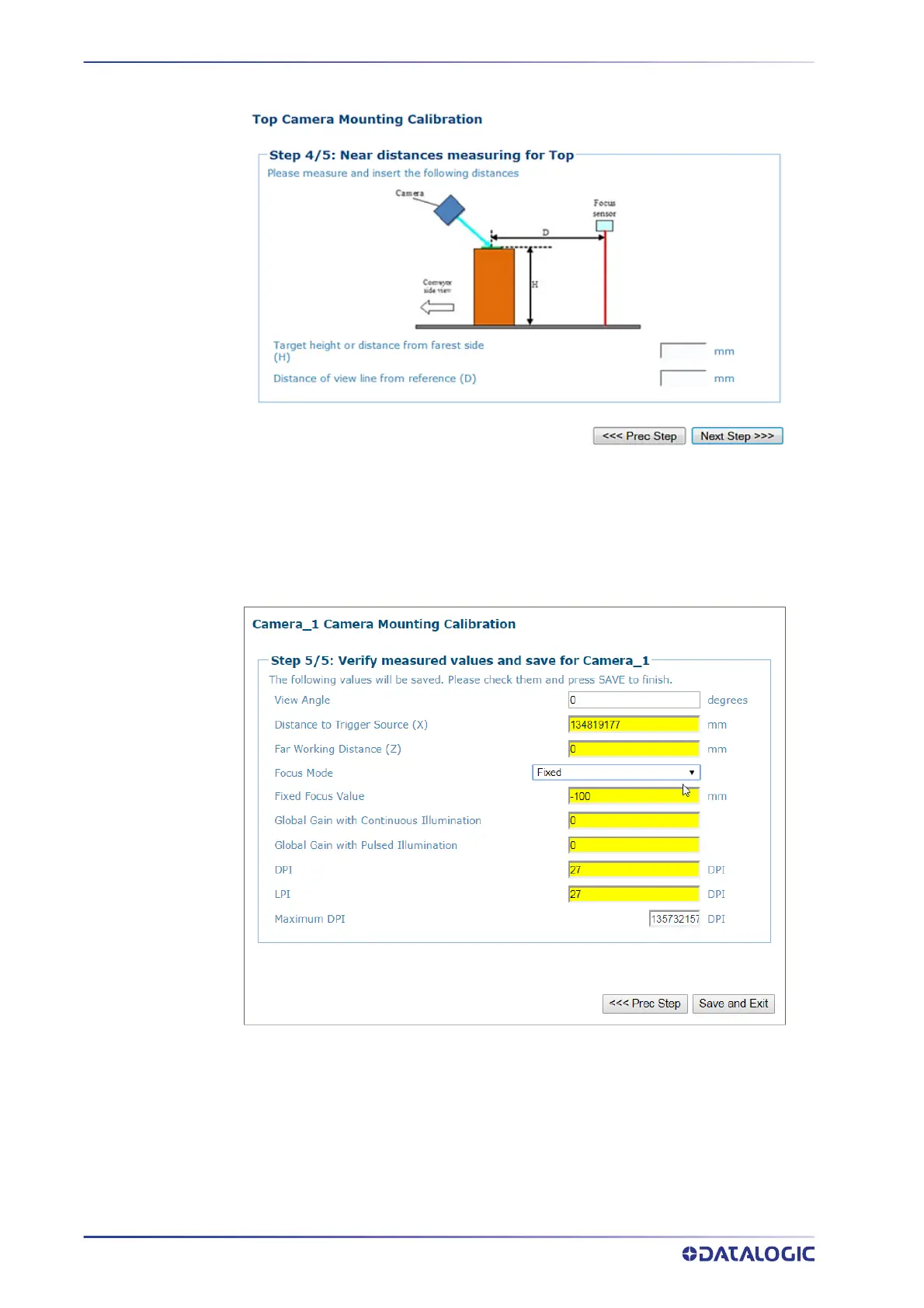

15. Click Next Step >>>. The Step 4/5 Mounting Calibration Window opens.
16. Enter the Target height (top mount AV7000) or distance from farthest side
mounted AV7000) (H).
17. Enter D
istance of view line to reference (D). This is the distance from DM3610,
RangeFinder, or Light Curtain to the view line.
18. Select
Next >>>. The Step 5/5 Mounting Calibration Window opens.
19. Select Fixed or Profile from the Focus Mode drop-down, if necessary.
20. The
Mounting Calibration Wizard displays the results of the static calibration. The
yellow highlight indicates which fields will be changed in the XML file. These new
parameters will automatically be used by the AV7000.
21. Click
Save and Exit.
