FOCUSING SETUP AND CALIBRATION
368
AV7000 LINEAR CAMERA

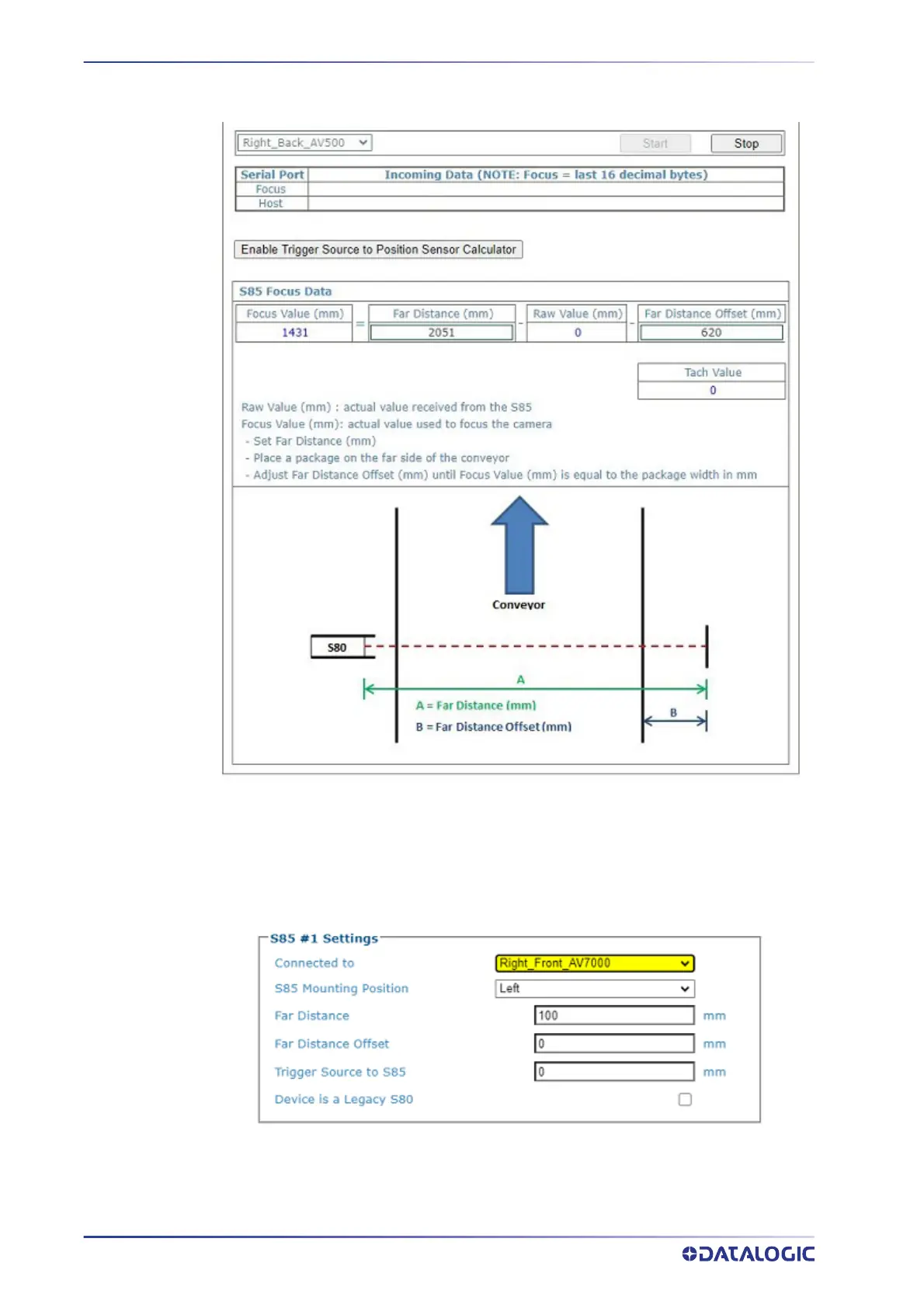

10. In e-Genius under Diagnostics, navigate to Serial Comm Status. The Serial Com-
munications Status window opens.
11. Remove all objects from the conveyor belt and click the Start button.
12. Determine the Far Distance (A).
13. Enter the displayed distance in the Oper
ating Mode > Far Distance field. Click
Update to save your changes.
14. Place an object of known width on the far edge of the conveyor and adjust the Far
Distance Offset (B) until the focus value equals the object width.
