6. Make sure the main part of the signal reaches inside line 192 in the RangerOScope
application program.

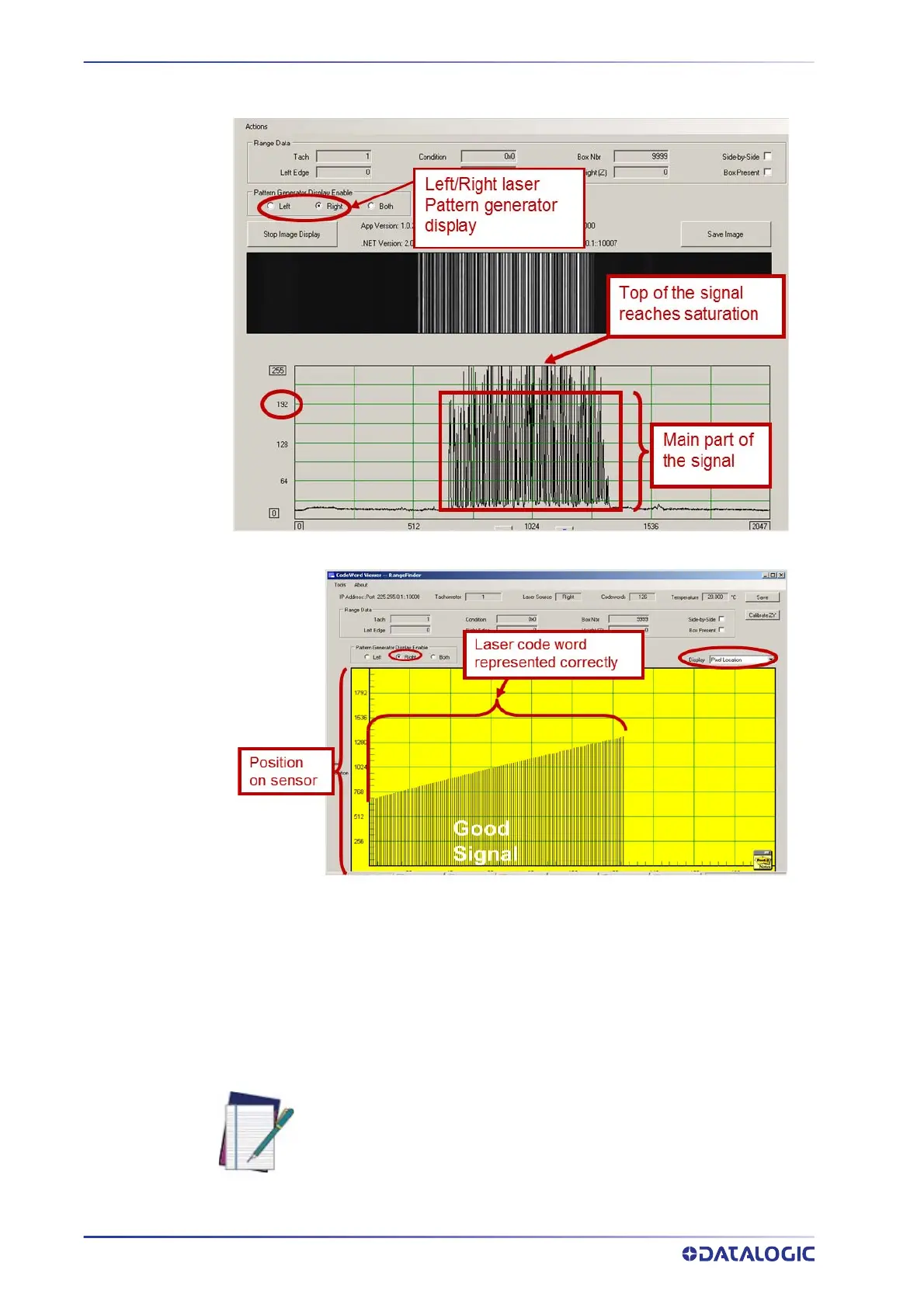

7. Open the CodeWord Viewer application and view the signal.
8. Select the Left option button under Pattern Generator Display Enable.
9. Select P
ixel Location from the Display drop-down list.
10. Watch the CodeWord Viewer screen for a few moments, and make sure the code
w
ord signal remains solid, and none of the code words drop in and out.
11. Select the Rig
ht option button under Pattern Generator Display Enable, and make
sure the code word signal remains stable.
NOTE: If the gain is set too high or too low some of the code words along
the scan line will drop in and out as shown below. Adjust the gain to elimi-
nate the drop-outs.
