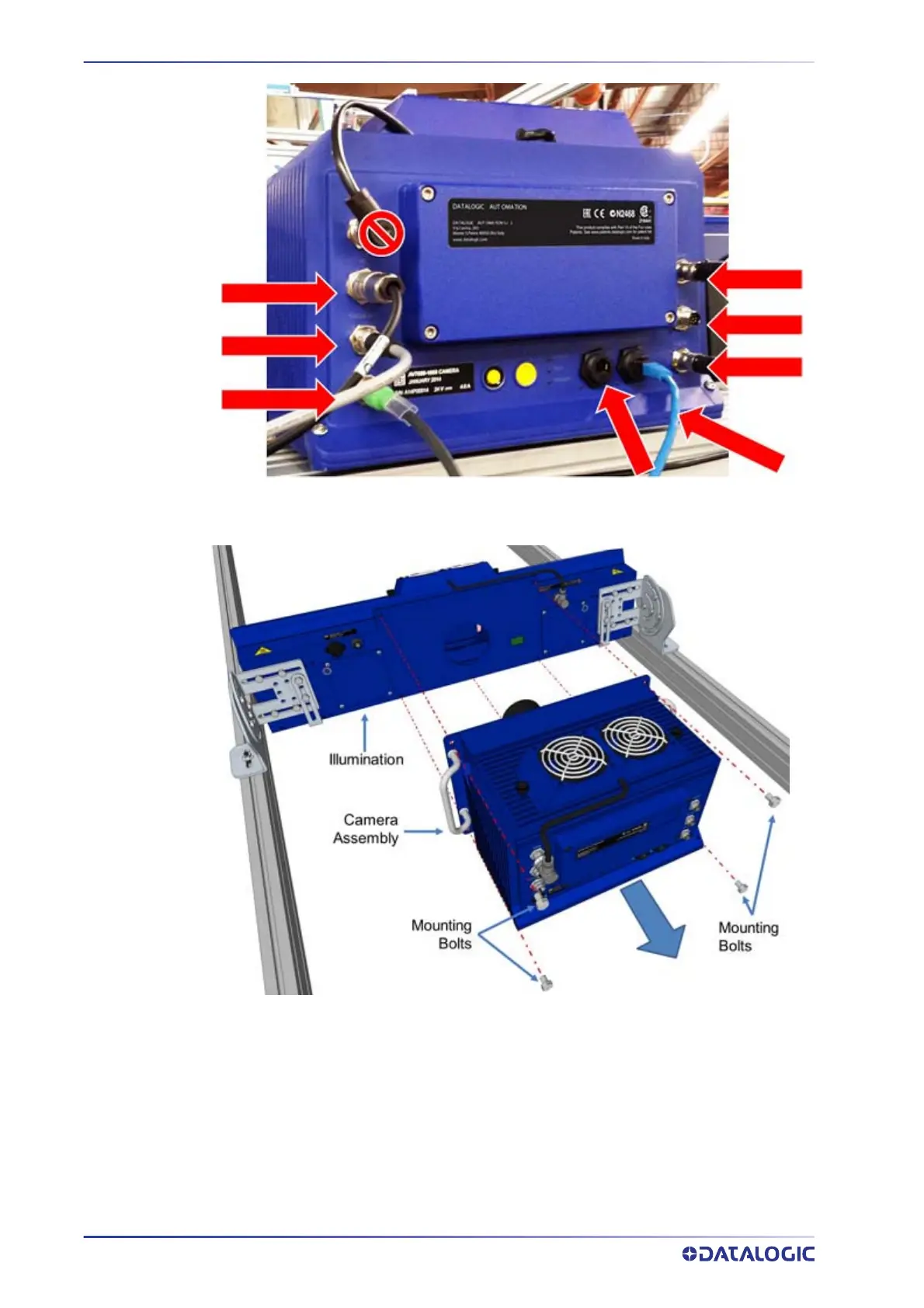

TROUBLESHOOTING
430
AV7000 LINEAR CAMERA
3.
Remove the camer
a from the illumination assembly by unscrewing the f
our (4)
moun
ting bolts.
4.
Att
ach the
r
epl
acement c
amera assembly to the illumination.
5.
Lift the camera int
o place, inserting the lens through the lens hole and the Locat
or
Pin in
to the Locat
or Pi
n Hole.
6.
Screw the mounting bolts back in
place to secur
e the camera.
449
451
