REPLACING AV7000 WITH A FAILED MEMORY CARD
PRODUCT REFERENCE GUIDE
431
7. Connect only the power cable to the camera assembly.

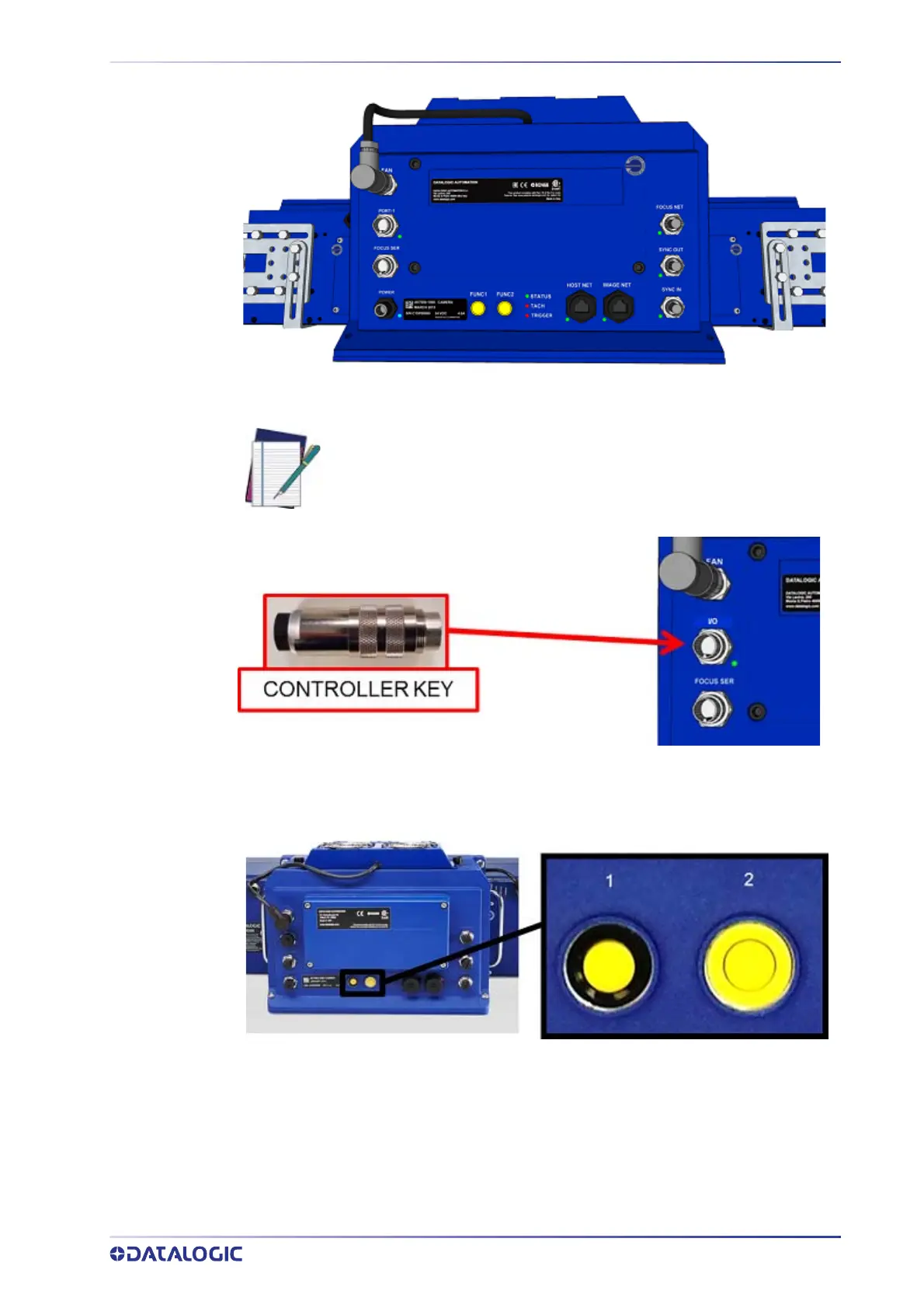

8. Connect the Controller Key (tach dongle) to the I/O port of the AV7000.
9. With the unit powered up, hold down buttons 1 and 2 at the same time. The STA-
TUS LED (located to the right of button #2) will blink GREEN and then RED to indi-
cate that the unit has been defaulted.
10. Disconnect the power connection from the camera assembly.
11. Remove the CONTROLLER KEY from the I/O port of the AV7000.
12. Re-attach all of the cables to the c
amera in their original locations.
13. Apply power to the AV7000 Camera.
NOTE: DO NOT CONNECT ANY OTHER CABLES UNTIL THE FOLLOWING STEPS
AR
E COMPLETED. If other cables are connected there is a risk that the existing
tunnel parameters may get corrupted.
