I/O CONTROLLOGIX MESSAGING EXAMPLE
PRODUCT REFERENCE GUIDE
445

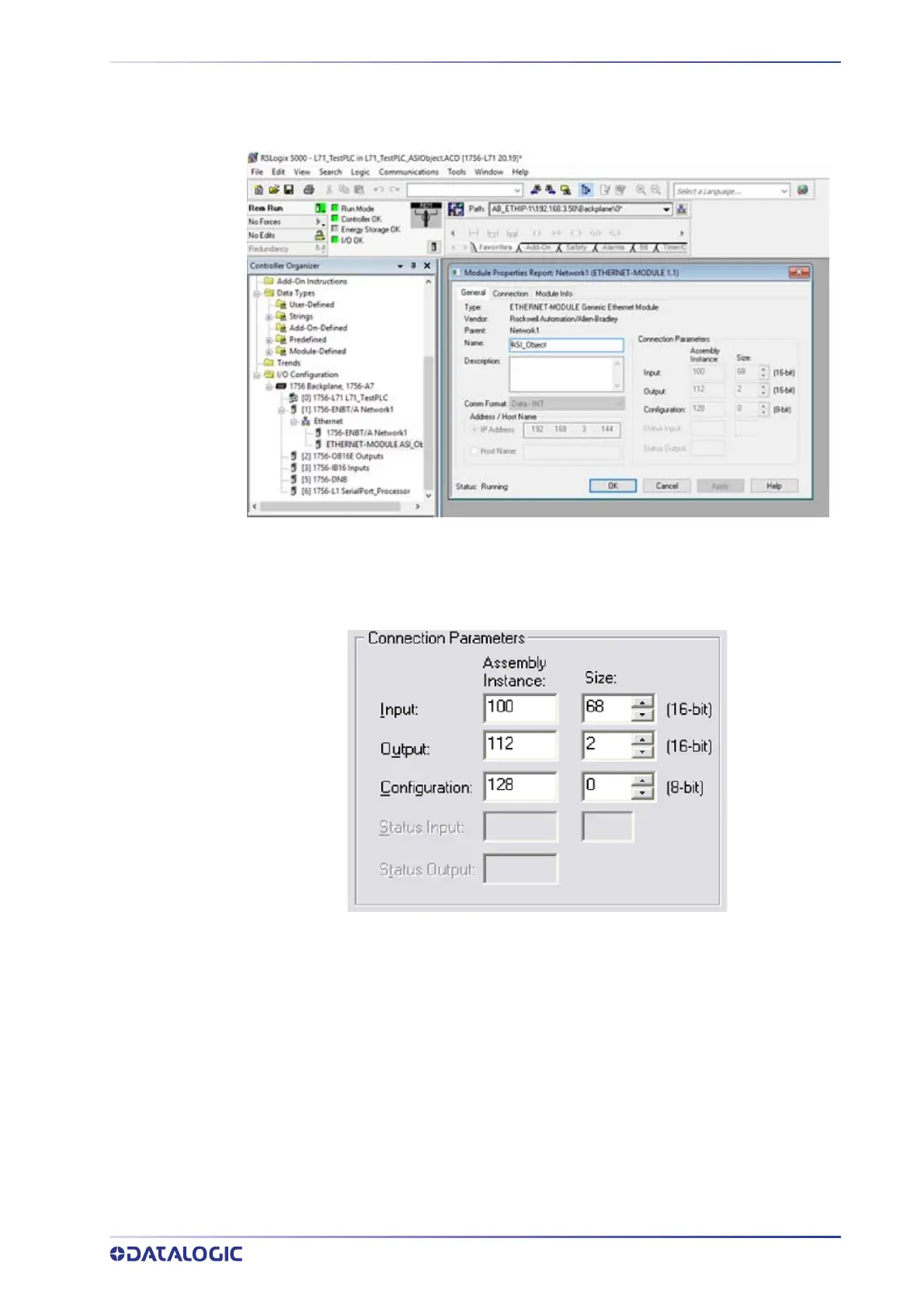

3. Specify the Properties for your camera. First set the Comm Format to Data-INT.
This must be done first as it cannot be changed later.
4. Specify the Name, Description and IP address of the camera.
5. Next enter the
Connection Parameters.
6. You can only “schedule” I/O message transfers to the camera at a fixed interval.
Click the
Connection Tab and specify this interval. The camera will handle inter-
vals down to 20 milliseconds.
