APPENDIX A
446 AV7000 LINEAR CAMERA

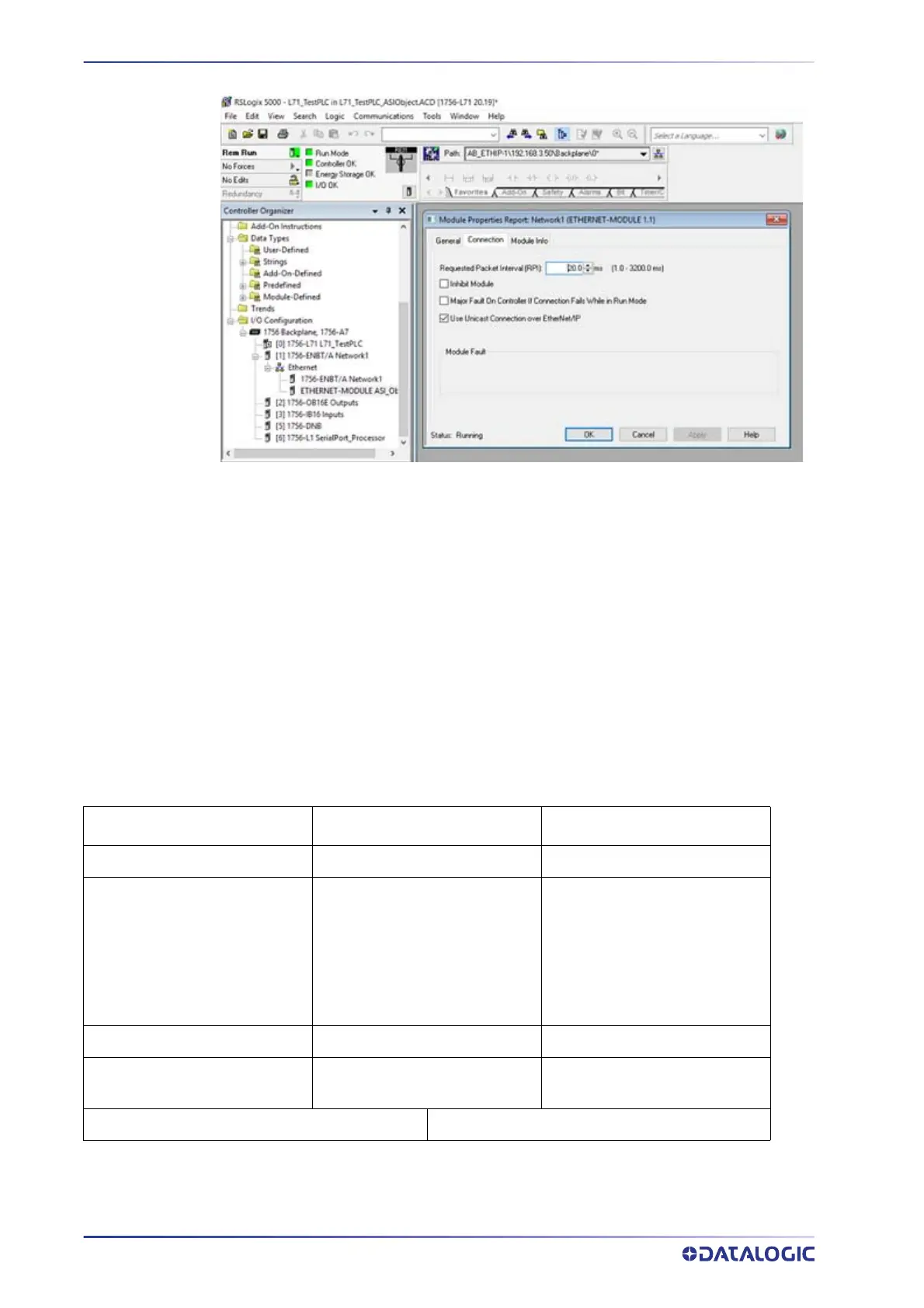

7. Click OK.
8. After the module definition for the camerar has been completed, tags will be cre-
ated in the controller based on the name y
ou specified on the properties page for
the module. These tags will consist of the name followed either by the letter
“Reader:C Configuration Data” on page 446 the “Reader:O Output Data” on
page 447 or the “Reader:I Input Data” on page 446. These tags are based on the
reader assembly objects.
Reader:C Configuration Data
This data is not used.
Reader:I Input Data
Tag Name Value Description
Reader:I.Data[0] Discrete Input Word See bit definitions.
Reader:I.Data[1] Bar Code Sequence Number
This field is updated every time
the bar code dat
a is updated.
However, the bar code data will
only be updated when the “Last
Bar Code Sequence Number”
(see Output Data) is set equal to
this value.
Reader:I.Data[2] Bar Code Status Not currently used.
Reader:I.Data[3] Bar Code Size (words)
Number of words which contain
the bar
code data
Reader:I.Data[4-67] Bar Code Data
